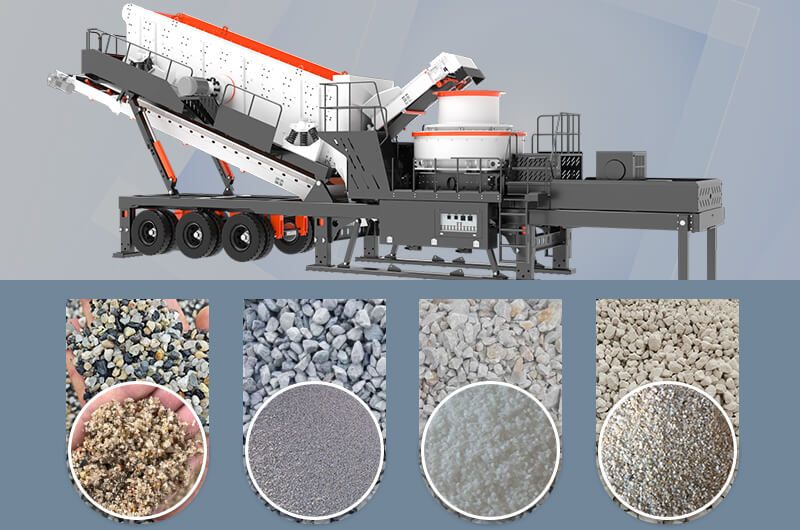

K Series Fine Crushing, Shaping and Screening Mobile Station

Applicable materials: bluestone, granite, fluorite, river pebbles, quartz sand, limestone, quartz stone, etc. Application: highways, buildings, bridges

Processing capacity: 10-520t/h

Feed size: 30-50mm

Get Quotes

K Series Fine Crushing, Shaping and Screening Mobile Station

60s Manual Response

24-hour Free Solution

1-10 Days Shipping

Quick Installation

One Year Warranty

Factory Direct Sales

Product Introduction

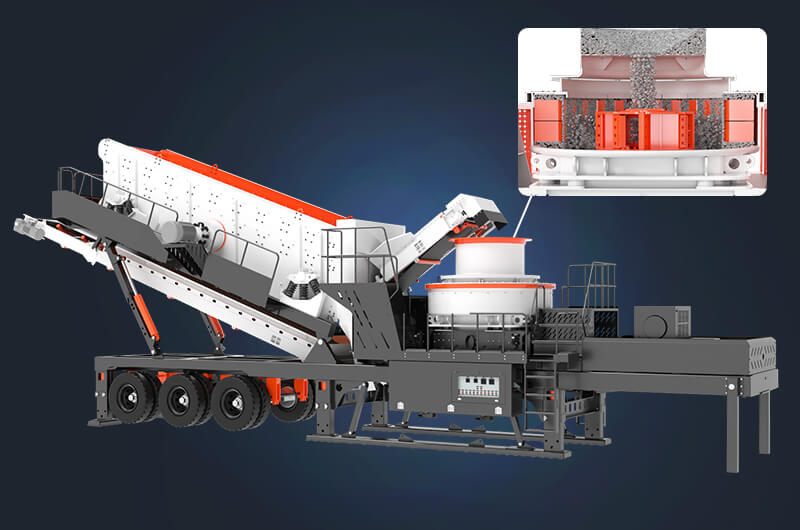

The K series fine crushing, shaping and screening mobile station has 4 models, which overcomes the difficulty of combining traditional mobile stations with artificial sand making equipment. It is equipped with advanced VSI high-efficiency vertical shaft impact crusher. The crushed sand and gravel particles form cubes, with uniform particle size, which is especially suitable for concrete sand.

Applicable materials

bluestone, granite, fluorite, river pebbles, quartz sand, limestone, quartz stone, etc.


Application

highways, buildings, bridges

Product advantages

Shoe design, no infrastructure required.

The machine body support device, developed independently by us, can be automatically folded during transportation, which is convenient for transportation; after entering the work area, the machine can be put into operation by simply leveling the ground, saving a lot of infrastructure construction time, related material costs and manpower

Good finished product particle size

The product is cubic, with good particle size and extremely low flake content

Flexible combination

Direct and effective, independent use, and diverse process configurations.

Easy to install

Flexible parking function, quickly enter the working mode.

Product Parameter

Standard Model Model	‌Supporting Equipment	‌Supporting Equipment			Overall handling capacity(t/h)	Overall dimension
Model	Model	‌Feed size(mm)	Capacity (t/h)		Overall handling capacity(t/h)	Overall dimension
KV9526-2	3YZS1860	VSI9526	≤40	150-190	≤170-220	14920×3660×7100(mm)
KV9532-2	3YZS1860	VSI5X9532	≤40	180-280	≤200-300	14920×3660×7100(mm)
KV8518-2	3YZS1848	VSI8518	≤35	100-130	≤120-150	14920×3660×7100(mm)
KV8522-2	3YZS1860	VSI5X8522	≤35	120-200	≤140-230	14920×3660×7100(mm)
