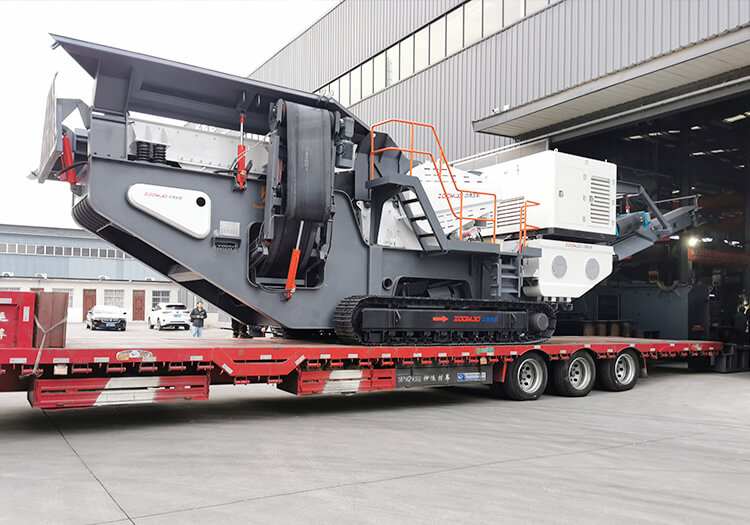

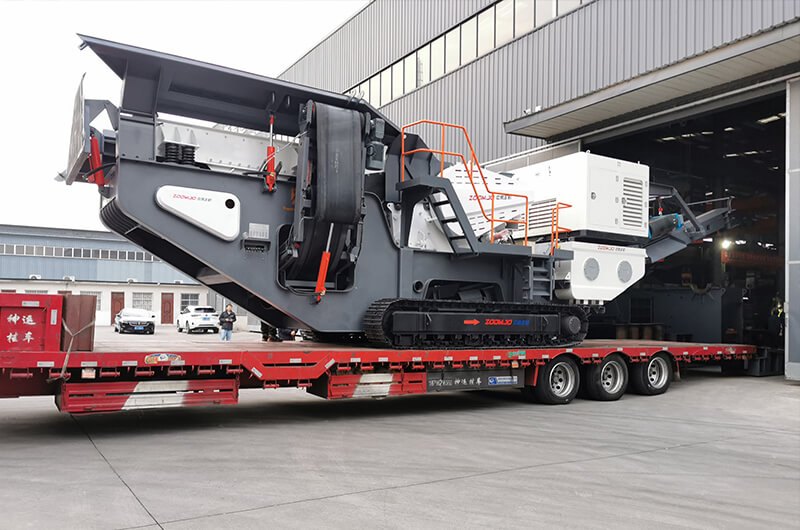

Crawler Mobile Jaw Crusher Station

Applicable materials: iron ore, limestone, etc. Scope of application: Widely used in road and bridge construction, urban construction, metallurgy, energy and other fields.

Feed size: 400-1000mm

Processing capacity: 100-450t/h

Get Quotes

60s Manual Response

24-hour Free Solution

1-10 Days Shipping

Quick Installation

One Year Warranty

Factory Direct Sales

Product Introduction

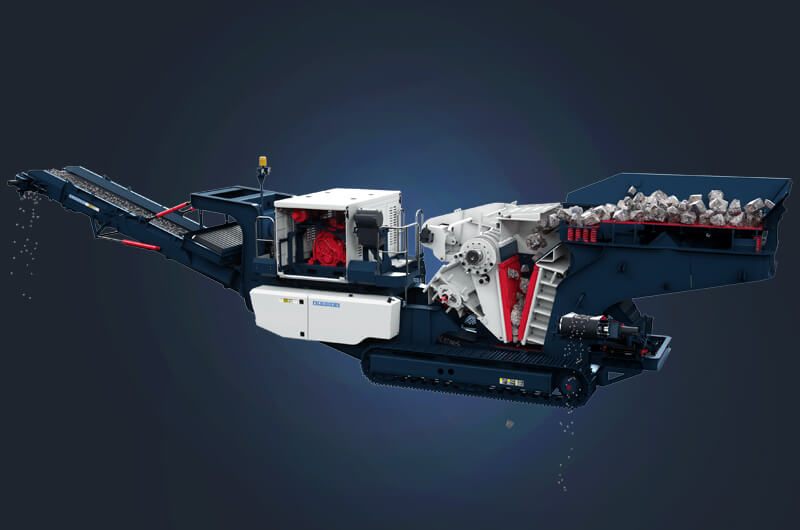

Suitable for the coarse crushing of all natural stones. The equipment adopts crawler chassis, fully hydraulic drive, equipped with large crushing ratio jaw crusher and feeder, belt conveyor and other auxiliary equipment, forming an integrated group operation mode. One-stop solution to the coarse crushing of materials. It has high reliability and high adaptability, and is not afraid of narrow terrain and harsh environment.

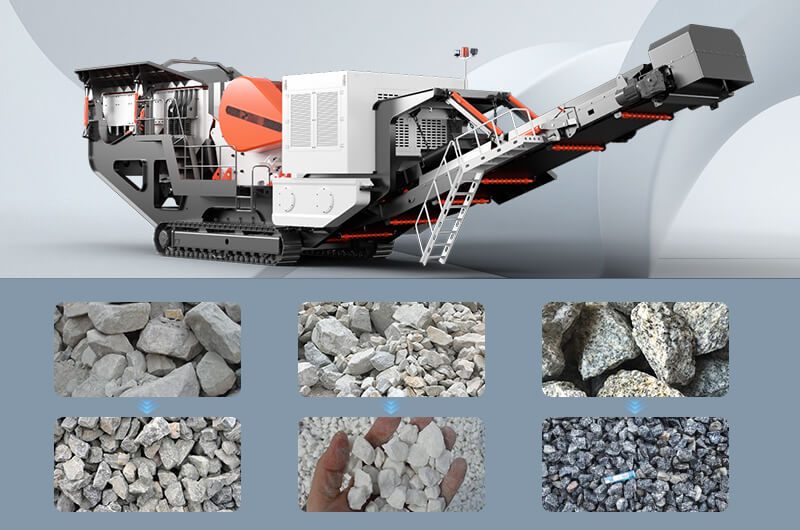

Applicable materials

iron ore, limestone, etc

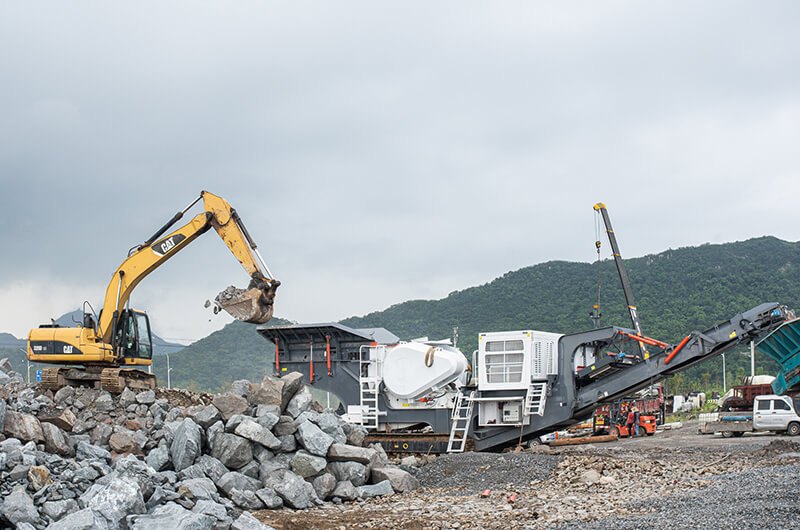

Scope of application

Widely used in road and bridge construction, urban construction, metallurgy, energy and other fields.

Product advantages

Powerful, stable and reliable.

Power comes from a well-known diesel engine, which is powerful, stable and reliable.

High crushing force, convenient and fast.

The crushing host adopts hydrostatic drive, which brings greater crushing force, and hydraulically adjusts the size of the discharge port, which is convenient and fast.

Reduce downtime.

The crushing host supports reverse operation to clear blockages, greatly reducing equipment downtime.

Intelligent operation and real-time adjustment.

The feeding speed is adjusted in real time according to the load of the crushing host to ensure good material flow, PLC intelligent control system, intelligent operation, and powerful functions.

Product Parameters

Model	TC96	TC106	TC116	TC120
Feeder
Equipment	GZD9638	ZSW1042	GZD1142	GZD1248
Motor	5.5KW*2	7.5KW*2	7.5KW*2	7.5KW*2
Driving method	motor drive	motor drive	motor drive	motor drive
Crushe
Equipment	SC96	SC106	SC116	SC120
Maximum feed siz	550mm	650mm	700mm	800mm
Electrical machiner	90KW	110KW	132KW	160KW
Driving metho	motor drive	motor drive	motor drive	motor driv
Fram
Hydraulic Crawler Chassi	35T	DL385V	DL385V	NS415E
Boat fram	Q345B Welding	Q345B Welding	Q345B Welding	Q345B Weldin
Main Conveyo
Stacking height	B1000*12.9m	B1000*12m	B1000*12m	B1000*12.9m
Driving metho	Motor reducer drive 11KW	Motor reducer drive 11KW	Motor reducer drive 11KW	Motor reducer drive 11K
Main belt power(kw)	EP300-B1000*5(6.0+1.5)	EP300-B1000*5(6.0+1.5)	EP300-B1000*5(6.0+1.5)	EP300-B1200*5(6.0+1.5)
Unearthed belt conveyo
Specification	B650*6.8m	B650*6.8m	B650*6m	B650*6.8m
Driving metho	Motor reducer drive 4KW	Motor reducer drive 4KW	Motor reducer drive 4KW	Motor reducer drive 4K
Ring polyester canvas bel	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)	EP200-B650*3(4.5+1.5)
Iron remove
Specificatio	RCYQ-13	RCYQ-13	RCYQ-13	RCYQ-13
Driving metho	Motor reducer drive 3KW	Motor reducer drive 3KW	Motor reducer drive 3KW	Motor reducer drive 3KW
Power syste
Generating se	240KW发动机组	300KW engine set	300KW engine set	300KW engine set
Electrical syste
Electrical control cabinets	Jaw crusher motor soft start, other motors direct start, main electrical components Schneider	Jaw crusher motor soft start, other motors direct start, main electrical components Schneider	Jaw crusher motor soft start, other motors direct start, main electrical components Schneider	Jaw crusher motor soft start, other motors direct start, main electrical components Schneider
Hydraulic syste
Sil	Hydraulic automatic folding	Hydraulic automatic folding	Hydraulic automatic folding	Hydraulic automatic folding
Belt press folding cylinder	Hydraulic automatic foldin	Hydraulic automatic folding	Hydraulic automatic folding	Hydraulic automatic folding
Hydraulic pumps, valves, accessories	Load sensitive, electro-hydraulic proportional valve group	Load sensitive, electro-hydraulic proportional valve group	Load sensitive, electro-hydraulic proportional valve group	Load sensitive, electro-hydraulic proportional valve group
