Four-combination mobile crushing station

Applicable materials: river pebbles, limestone, granite, diabase, basalt, andesite, construction waste, etc. Application scope: Widely used in road and bridge construction, urban construction, metallurgy, energy and other fields.

Feed size: ≤425mm

Production capacity: 15-163t/h

Get Quotes

Four-combination mobile crushing station

60s Manual Response

24-hour Free Solution

1-10 Days Shipping

Quick Installation

One Year Warranty

Factory Direct Sales

Product Introduction

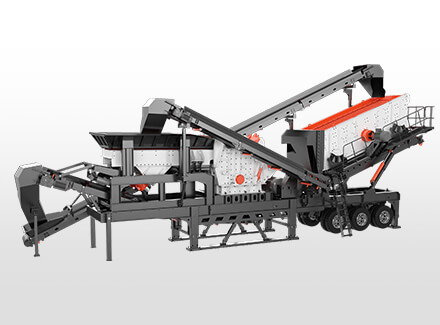

The four-combination mobile station is independently combined according to the needs of coarse crushing, medium crushing and fine crushing products. It is economical and applicable, suitable for small and medium-sized production, multi-integrated fully automatic coarse and fine secondary crushing, self-contained including conveying and screening. According to the customer's feed particle size and discharge particle size requirements, the jaw crusher is used as the primary crusher, and the secondary crushing is equipped with a cone crusher and an impact crusher. There are eight models to choose from to meet the needs of different customer groups.

Applicable materials

river pebbles, limestone, granite, diabase, basalt, andesite, construction waste, etc.

Application scope

Widely used in road and bridge construction, urban construction, metallurgy, energy and other fields.

Product advantages

Integrated crusher

The four-combination mobile crushing station has an integrated vehicle installation of conveyor, vibrating screen and crusher, which can be moved as a whole vehicle.

Easy to transport by road

The steering traction shaft of the combined mobile crushing station is convenient for road transportation and site penetration.

Low material transportation cost

The four-combination mobile crushing station can be directly driven into the original production site to reduce material transportation costs.

Personalized needs

Multi-combination mobile crushers can be used for host switching to meet user personalized needs.

Product Parameter

Standard Model Model	‌Supporting Equipment	‌Supporting Equipment			Preparation capacity (t/h)	Dimensions
Standard Model Model	Model	Model	Feed size (mm)	Output (t/h)	Preparation capacity (t/h)	Dimensions
KE400C55-4	3YZS1237	PE400×600	≤350	15-60	≤45-90	16400×7940×6770（mm）
KE400C55-4	GZD960×3500	PYB900	≤115	50-90	≤45-90	16400×7940×6770（mm）
KE500C55-4	3YZS1237	PE500×750	≤425	50-100	≤50-90	16400×7940×6770（mm）
KE500C55-4	GZD960×3500	PYB900	≤115	50-90	≤50-90	16400×7940×6770（mm）
KE400C55-4	3YZS1237	PEW400×600	≤350	15-70	≤50-100	16400×7940×6765（mm）
KE400C55-4	GZD960×3500	PYB900	≤115	50-90	≤50-100	16400×7940×6765（mm）
KE400C75-4	3YZS1237	PE400×600	≤350	15-60	≤45-100	16400×7940×6765（mm）
KE400C75-4	GZD960×3500	CS75B		45-163	≤45-100	16400×7940×6765（mm）
KE500C75-4	3YZS1237	PE500×750	≤425	50-100	≤60-100	16400×7940×6765（mm）
KE500C75-4	GZD960×3500	CS75B		45-163	≤60-100	16400×7940×6765（mm）
KE400C75-4	3YZS1237	PEW400×600	≤350	15-70	≤60-100	16400×7940×6765（mm）
KE400C75-4	GZD960×3500	CS75B		45-163	≤60-100	16400×7940×6765（mm）
KE400F110-4	3YZS1237	PE400×600	≤350	15-60	≤35-100	16400×7940×6765（mm）
KE400F110-4	GZD960×3500	PF1010	≤200	50-90	≤35-100	16400×7940×6765（mm）
KE500F110-4	3YZS1237	PE500×750	≤425	50-100	≤45-100	16400×7940×6765（mm）
KE500F110-4	GZD960×3500	PF1010	≤200	50-90	≤45-100	16400×7940×6765（mm）
