Applicable materials: rocks, pebbles, construction waste, tailings, iron ore, molybdenum ore, coal, glass, ceramics, etc. Application fields: Widely used in road and bridge construction, urban construction, metallurgy, energy and other fields.

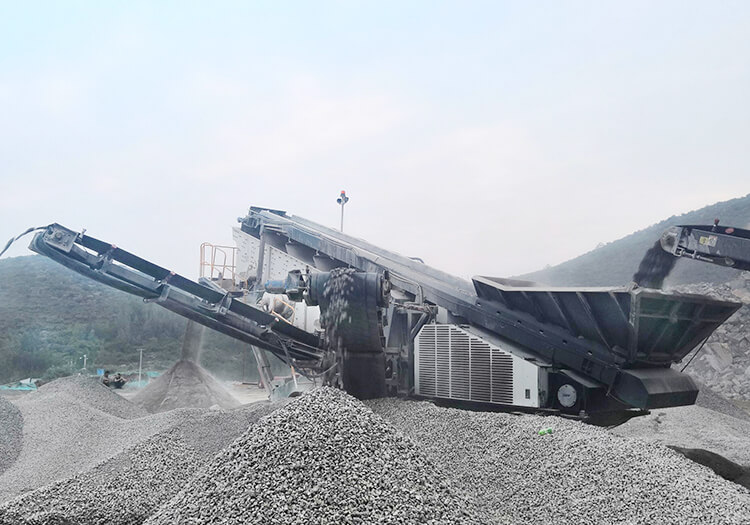

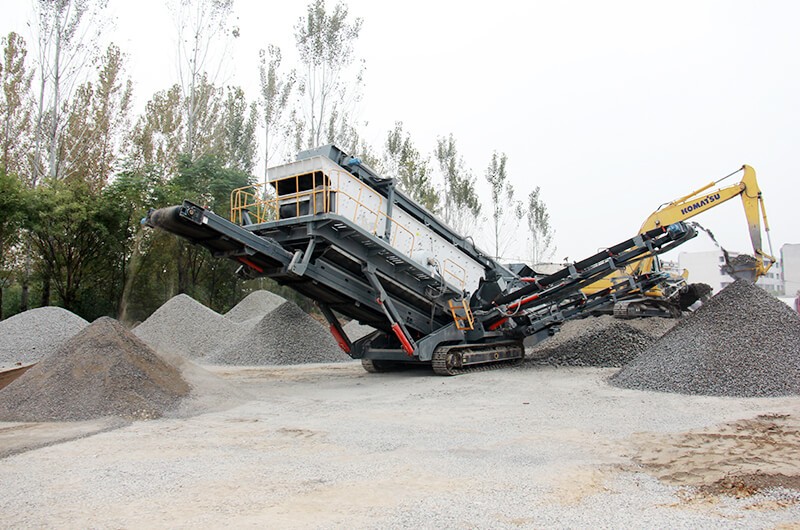

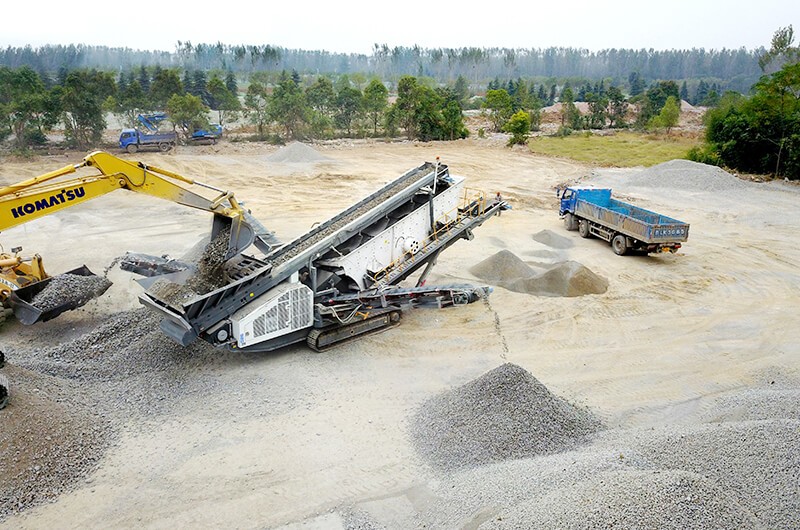

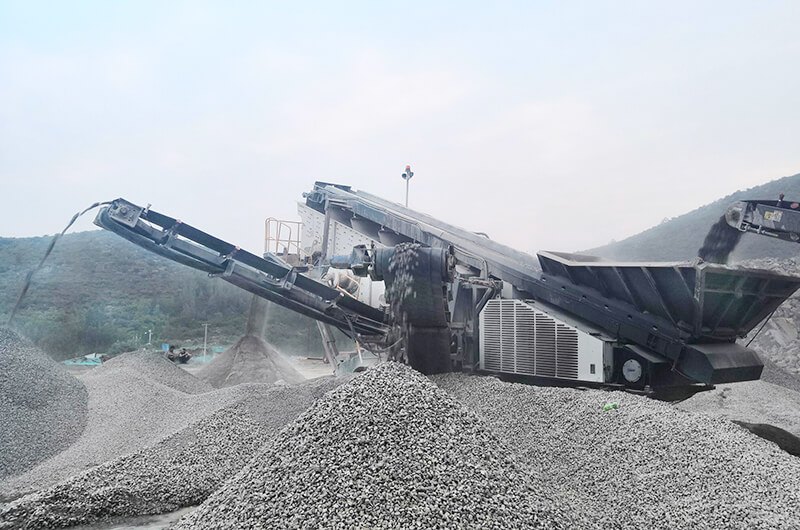

The crawler mobile tilting screening station is mainly used for screening finished materials such as sand and gravel aggregates. It has strong mobility and good on-site mobility, and can adapt to various complex construction environments such as mountains and wetlands. It is often used in conjunction with a mobile crushing station. It is standardly equipped with three layers of screens and can produce up to four types of aggregates. Optional spraying system and wind selection system are used to remove light materials mixed in construction solid waste, such as plastics, waste paper, wood residue, etc. Regardless of the working conditions of the screening, the maximum screening particle size must be controlled within 150MM. Optional feeding system can be used to achieve screening efficiency of special materials, and a variety of drive modes are available.
rocks, pebbles, construction waste, tailings, iron ore, molybdenum ore, coal, glass, ceramics, etc.
Widely used in road and bridge construction, urban construction, metallurgy, energy and other fields.
High-torque travel motor
The high-torque travel motor has mature technology, large driving force and high reliability. The travel system adopts a full-power variable open hydraulic system with excellent performance and can fully utilize the power of the engine.
Advanced configuration and convenient maintenance
The advanced control operation panel can not only provide users with more flexible and flexible solutions for production, but also has a powerful fault diagnosis function, effectively reducing equipment maintenance time.
Strong system flexibility and high production efficiency
A universal body and model, feeding unit interchange system, screening unit interchange system, its work efficiency and production capacity are better than the same level or fixed screening station.
Easy process conversion to meet different needs

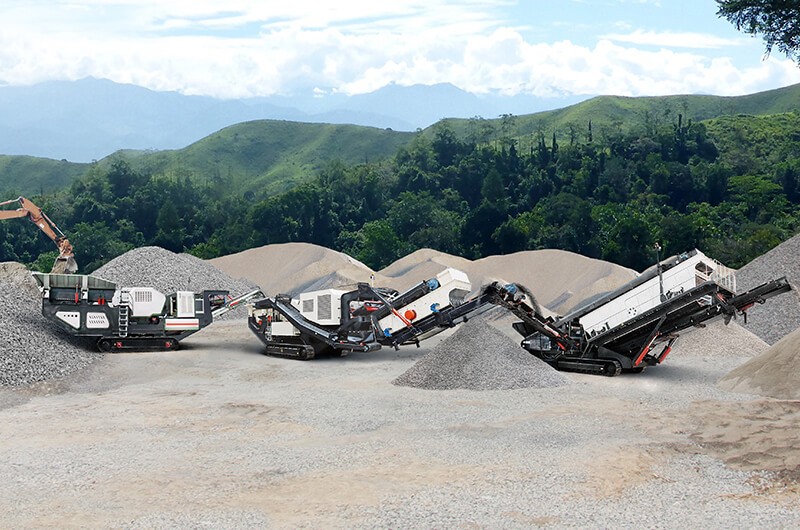

Customers can choose "screen first and then crush" or "crush first and then screen" to meet product requirements, or they can increase the use of equipment by adding a return conveyor to achieve the conversion between closed circuit and open circuit.
| Model | TS1860 | TS2160 |
|---|---|---|
| Screen Box | 1800x6000 Three - layer | 2100x6000 Three - layer |
| ≤200mm | ≤200mm | |
| 5 - 100mm | 5 - 100mm | |
| Hydraulic motor drive | Hydraulic motor drive | |
| Frame | 40T | 40T |
| Q345B welding | Q345B welding | |
| Feeding belt conveyor | B1000*11.8米 | B1000*11.8米 |
| Hydraulic motor drive | Hydraulic motor drive | |
| EP - 200 - B1000x4(4.5 + 1.5) | EP - 200 - B1000x4(4.5 + 1.5) | |
| B650*5.9m | B650*5.9m | |
| One layer belt conveyor | B650*5.9m, 2.8m, Hydraulic motor drive | B650*5.9m, 2.8m, Hydraulic motor drive |
| Two - layer belt conveyor | B650*7.5m, 3.5m, Hydraulic motor drive | B650*7.5m, 3.5m, Hydraulic motor drive |
| Three - layer belt conveyor | B650*7.5m, 3.5m, Hydraulic motor drive | B650*7.5m, 3.5m, Hydraulic motor drive |
| Under - screen belt conveyor | B1000*8.5m, 3.6m, Hydraulic motor drive | B1000*8.5m, 3.6m, Hydraulic motor drive |
| Power system | 154KW engine | 154KW engine |
| Electrical System | Engine operating parameter monitoring, crawler walking, each belt conveyor can be operated remotely, and the main electrical components are Schneider | Engine operating parameter monitoring, crawler walking, each belt conveyor can be operated remotely, and the main electrical components are Schneider |
| Hydraulic system | Belt conveyor folding, vibrating screen lifting | Belt conveyor folding, vibrating screen lifting |
| Load sensitive, electro - hydraulic proportional valve group | Load sensitive, electro - hydraulic proportional valve group |
