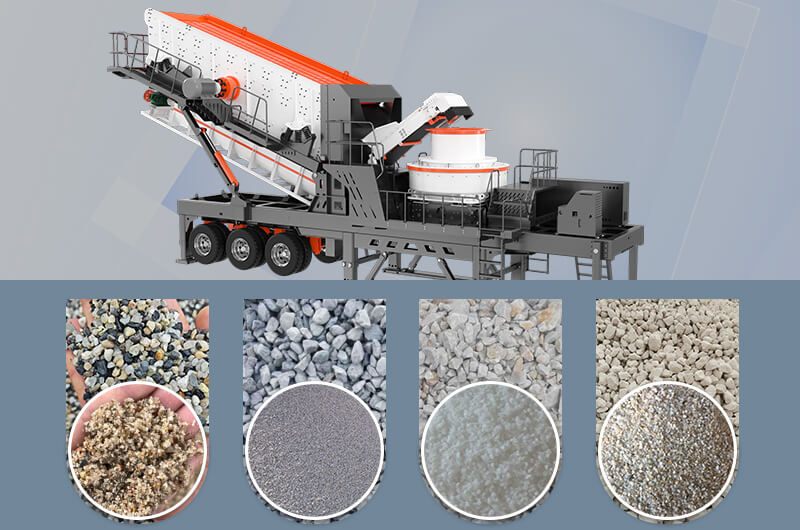

K Series Fine Crushing and Sand Washing Mobile Station

Applicable materials: limestone, granite, basalt, diabase, andesite, ore tailings, construction waste, etc. Application scope: Widely used in road and bridge construction, urban construction, metallurgy, energy and other fields

Feed particle size: ≤50mm

Production capacity: 120-640t/h

Get Quotes

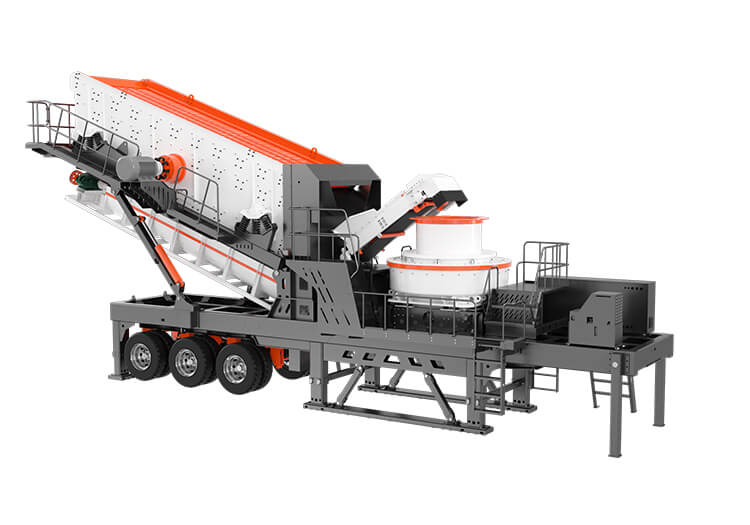

K Series Fine Crushing and Sand Washing Mobile Station

60s Manual Response

24-hour Free Solution

1-10 Days Shipping

Quick Installation

One Year Warranty

Factory Direct Sales

Product Introduction

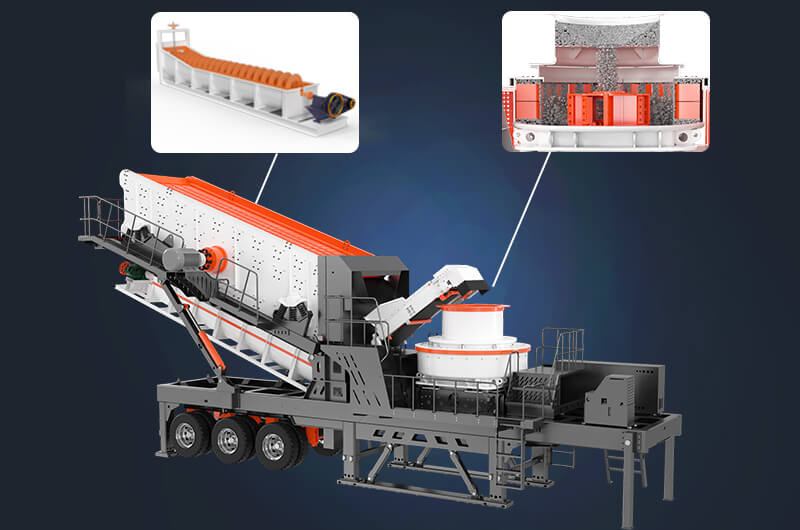

The K series mobile crushing and sand washing station is specially designed for customers to process construction sand and road construction sand and gravel. It integrates sand making and sand washing. It can not only clean sand and gravel but also complete classification and impurity removal operations. It is very suitable for the washing and selection of fine and coarse grained materials.

Applicable materials

limestone, granite, basalt, diabase, andesite, ore tailings, construction waste, etc.

Application scope

Widely used in road and bridge construction, urban construction, metallurgy, energy and other fields

Product advantages

Shoe design, no infrastructure required.The self-developed machine body support device, a shoe, can be automatically folded during transportation, which is convenient for transportation; after entering the work area, simply level the ground and start working, saving a lot of infrastructure construction time, related material costs and manpower.

Equipped with high-performance, large crushing ratio, and strong crushing impact crusher.

The product has excellent particle shape and is cubic.

From single-unit application to multi-terminal online application.

Adaptable host equipment switching to meet customer personalized needs.

Flexible and maneuverable parking function, quickly enter working mode.

Product Parameter

Standard Model Model	Supporting Equipment	Supporting Equipment			Preparation capacity (t/h)	Dimensions
	Model	Model	Feed size (mm)	Output (t/h)
KV9526-2X	3YZS1860	VSI9526	≤40	150-190	≤170-220	14760×3850×7100（mm）
	2XL-915
KV9532-2X	3YZS1860	VSI5X9532	≤40	180-280	≤200-300	14760×3850×7100（mm）
	2XL-915
KV8518-2X	3YZS1848	VSI8518	≤35	100-130	≤120-150	14760×3850×7100（mm）
	XL-915
KV8522-2X	3YZS1860	VSI5X8522	≤35	120-200	≤140-230	14760×3850×7100（mm）
	2XL-915
KC75-2X	3YZS1848	CS75B	≤102-175	A	≤A+(20~50)	14760×3850×7100（mm）
	XL-915
KC160-2X	3YZS1860	CS160B	≤168-192	A	≤A+(20~50)	14760×3850×7100（mm）
	XL-915
KH300-2X	3YZS1860	HPT300C2	≤84-168	A	≤A+(30~70)	14760×3850×7100（mm）
	2XL-915
KT250-2X	3YZS1860	HST250H1	≤88-360	A	≤A+(30~70)	14760×3850×7100（mm）
	2XL-915
