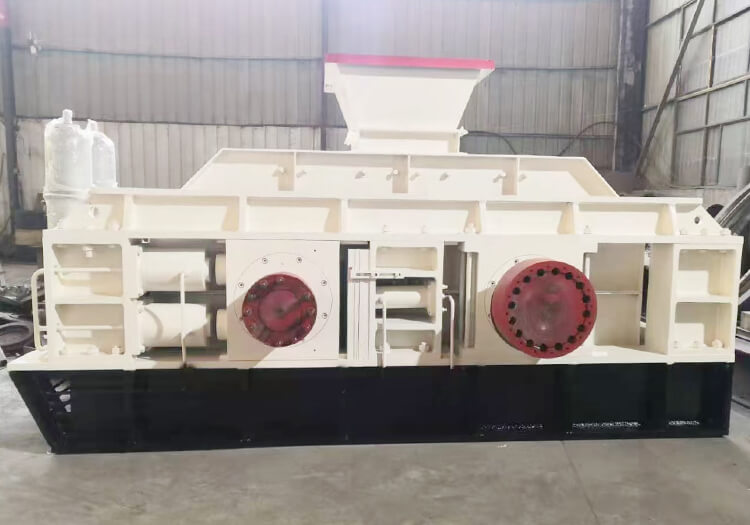

Hydraulic Roll Crusher

Applicable materials: river pebbles, coal gangue, limestone, pebbles, coal, dolomite, weathered rocks and other medium and high hardness materials;

Feed size: ≤30mm
Production capacity: 5-600t/h
Get Quotes
Hydraulic Roll Crusher
60s Manual Response
24-hour Free Solution
1-10 Days Shipping
Quick Installation
One Year Warranty
Factory Direct Sales
100% Factory Price
100% Factory Price
Long After-sales Service Time
Long After-sales Service Time
Free Design Solutions
Free Design Solutions
In-stock Support for Fast Shipping
In-stock Support for Fast Shipping

Product Introduction

The hydraulic roller mill has an excellent electromechanical and hydraulic integrated design, which enables the equipment to operate continuously, stably and reliably. It can generally increase the capacity by 30%-40% and reduce the total energy consumption by 20%-30% in sand and gravel aggregate and grinding systems. It can crush materials of various hardness in the mineral processing, chemical, refractory, stone, building materials and other industries.


  • Application scope: sand making, coal mining, cement, metallurgy, chemical industry, building materials and other industrial sectors

  • Finished product specifications: 2-5mm


Product advantages

1. Heavy-duty thickened roller skin is used, which is wear-resistant and impact-resistant, and the automatic lubrication device greatly prolongs the service life of parts;

2. The equipment is equipped with an automatic control system, which can significantly reduce investment and use costs compared with other crushing systems with the same performance;


3. Hydraulic adjustment is used to keep the roller skin gap between 1-40mm to maintain stable operation;

4. With overload protection, when unbreakable objects enter between the rollers, the rollers will automatically avoid them and automatically return to the set gap.


Product parameters

ModelRoller diameter
(mm)
Roller width
(mm)
Maximum feed size
(mm)
Corresponding processing capacity of discharge port(t/h)Motor power(kw)
5mm10mm15mm
2PGY1008ø 1000800≤4020-8030-11050-1502×55
2PGY1210ø 12001000≤6025-10050-18080-2402×90
2PGY1510ø 15001000≤8030-13060-24090-3302×160
2PGY1810ø 18001000≤10040-17080-320120-4502×250
2PGY2012ø 20001200≤12060-220110-400170-6002×315
