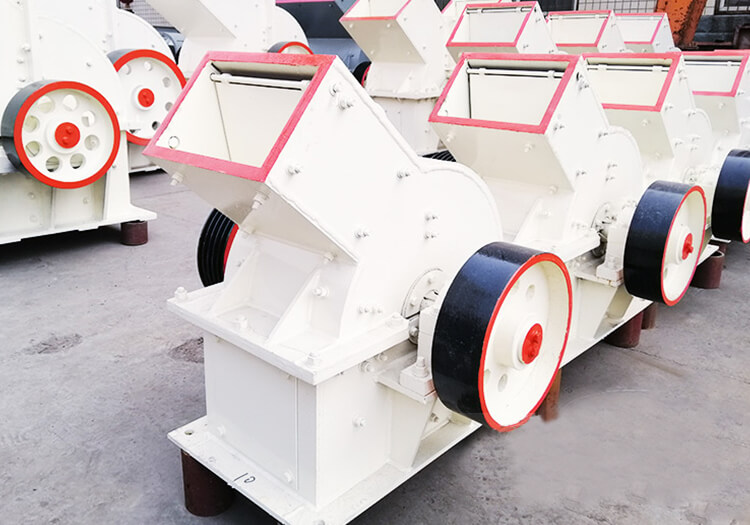

Hammer crusher

Applicable materials: coal gangue, pebbles, granite, silica, iron ore, wollastonite, calcite, etc.

Feed size: ≤350mm

Processing capacity: 5-150t/h

Get Quotes

60s Manual Response

24-hour Free Solution

1-10 Days Shipping

Quick Installation

One Year Warranty

Factory Direct Sales

Product Introduction

Hammer crusher is also called hammer crusher. It has one-step forming, large crushing ratio, high production capacity and uniform product particle size. It is suitable for fine crushing of limestone, coal or other brittle materials with medium hardness or below in metallurgy, building materials, chemical industry and hydropower and other industrial sectors. ZOOMJO GROUP has a history of designing and manufacturing hammer crushers for more than 30 years. The product structure is advanced, the performance is reliable and the energy consumption is low. In addition, the hammer crushers produced by our company are reasonably priced and have formed a series of products, which are very popular among users at home and abroad.

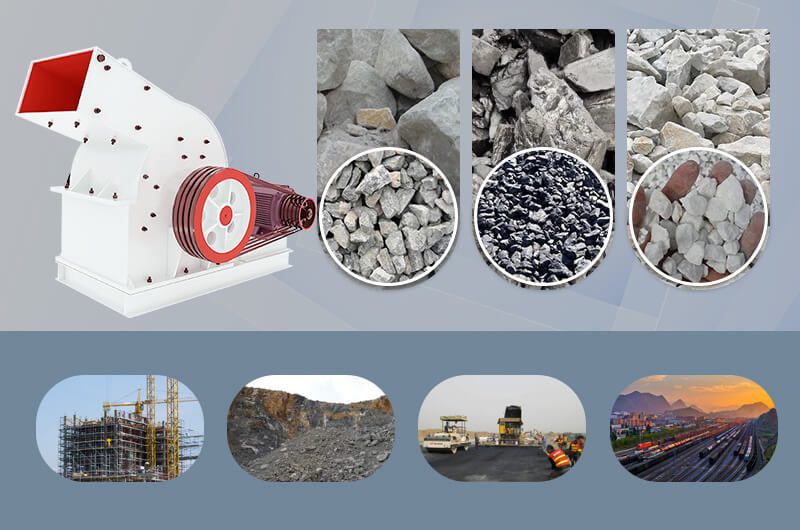

Application scope: mining, coal mining, power plant desulfurization, concrete mixing station, building materials, chemical industry, metallurgy and other industries.
Finished product specifications: 0-5, 5-10, 10-15, 15-30mm

Advantages and features

1. It can directly crush materials with a size of 600-1800mm into a size below 25mm.

2. It has the characteristics of high production capacity, uniform particle size, less over-crushing, simple structure, large weight and easy operation.

3. Hammer crusher is used to crush brittle materials such as coal gangue, coke, slag, red sandstone, shale, loose limestone, etc.

Product Parameters

Model	Feed size(mm)	Discharge size (mm)	Processing capacity (m³/h)	Motor power (kw)	Weight(t)	Specifications (L×W×H)(mm)
PCΦ400×300	≤200	≤25	5-10	11	0.8	900×670×860
PCΦ600×400	≤250	≤30	10-22	22	2.26	1200×1050×1200
PCΦ800×600	≤250	≤35	18-40	55	4.8	1310×1180×1310
PCΦ1000×800	≤350	≤35	25-50	75	5.9	1600×1390×1575
PCΦ1000×1000	≤350	≤35	30-55	90	8	1800×1590×1775
PCΦ1200×1200	≤350	≤35	50-80	132-160	19.2	2060×1600×1890
PCΦ1400×1400	≤350	≤35	50-100	280	32	2365×1870×2220
PCΦ1600×1600	≤350	≤35	100-150	480	37.5	3050×2850×2800
