Applicable materials: calcite, limestone, granite, river pebbles, dolomite, bluestone, glass, basalt,

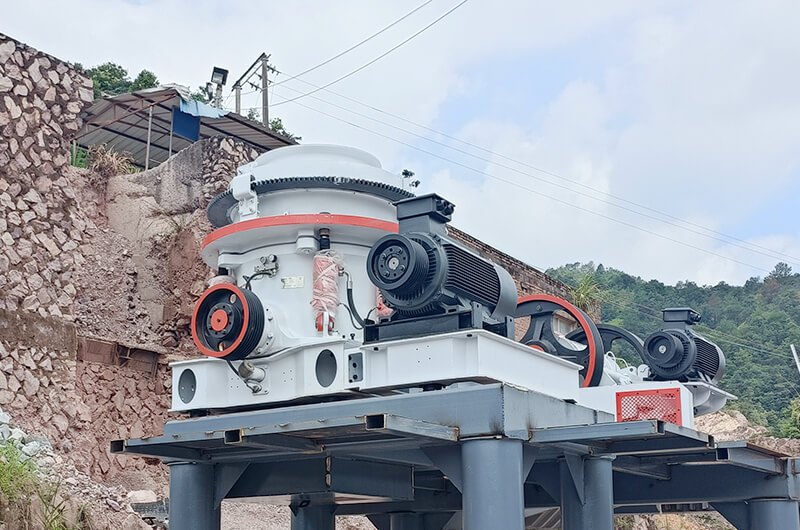

Multi-cylinder hydraulic cone crusher is a new type of cone crusher developed on the basis of introducing new German technology, with higher crushing capacity and crushing efficiency. It is used for secondary crushing, fine crushing and ultra-fine crushing of hard materials with a particle size of 0-385 mm.
Application areas: highways, building materials, mining
Finished product specifications: 0-5, 5-10, 10-20, 16-31.5mm
Large production capacity
Multi-cylinder hydraulic cone crusher perfectly combines crushing stroke, crushing speed and crushing chamber shape. Under the same fixed cone diameter, the Capacity is 30%-60% higher than that of spring cone crusher.
High wear resistance and bolt-fixed structure
The liner is made of ultra-high alloy manganese steel (ZGMn18Cr2) with long service life; no filler is required and it is easy to replace.
Positive pressure dust prevention system
Effectively prevent dust and other debris from entering the equipment and oil tank to avoid lubricating oil pollution.
Easy to adjust the discharge port
The hydraulic motor adjusts the discharge port to achieve precise control of the discharge port.
Zero-degree spiral bevel gear
High transmission efficiency, quiet, and prevents burning sleeves.

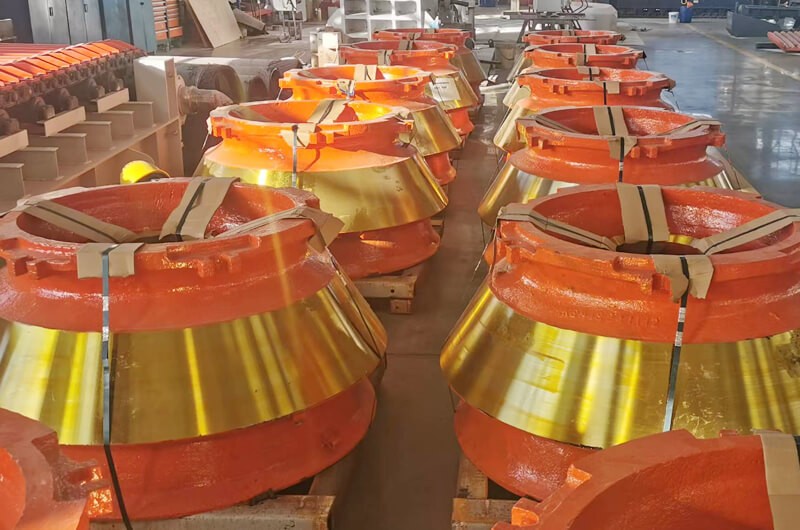

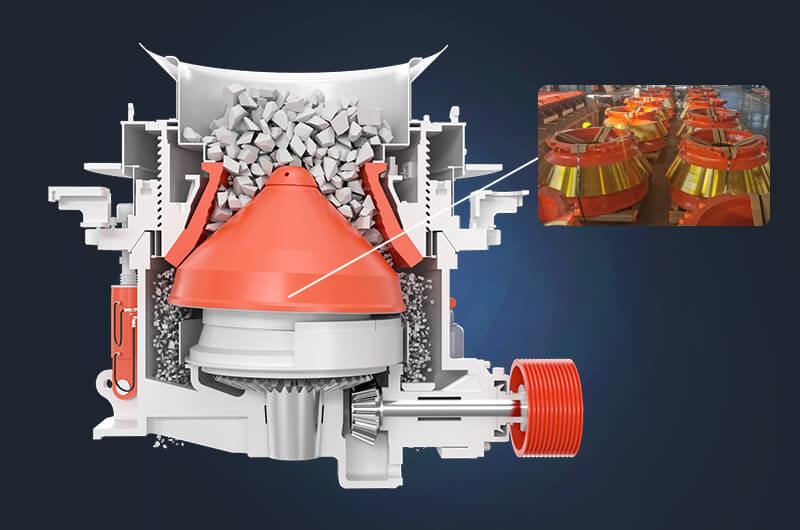

The liner is a wearing part in the production of hydraulic cone crusher, which is affected by factors such as ore hardness, particle size, compressive strength, feeding method, working conditions, etc.
You can maintain wearing parts and improve crusher performance by paying attention to the following factors:
Correctly select the crushing cavity of the crushed material.
The feed particle size ratio is appropriate.
Control the feed amount.
The crusher discharge area is unobstructed.
Feed evenly within 360° of the crushing cavity.
Choose the appropriate size of screening equipment.
The specifications of the conveyor are adapted to the maximum processing capacity of the crusher.
| Model | Cavity Type | Feeding Size(mm) | Closed Side Feeding Size(mm) | Minimum Discharge Opening(mm) | Motor Power(kw) | Capacity(t/h) |
|---|---|---|---|---|---|---|
| HP100 | C1 (Extra coarse) | 175 | 140 | 19 | 4P 100 | 45-140 |
| C2 (Coarse) | 125 | 105 | 13 | |||
| M (Medium) | 100 | 70 | 10 | |||
| F1 (Fine) | 71 | 50 | 9 | |||
| F2 (Extra fine) | 33 | 20 | 6 | |||
| HP200 | C2 (Coarse) | 235 | 190 | 19 | 4P 160 | 90-250 |
| M (Medium) | 171 | 120 | 16 | |||
| F1 (Fine) | 150 | 95 | 13 | |||
| F2 (Extra fine) | 116 | 70 | 8 | |||
| HP300 | C1 (Extra coarse) | 265 | 230 | 25 | 4P 220 | 115-440 |
| C2 (Coarse) | 240 | 210 | 20 | |||
| M (Medium) | 190 | 150 | 15 | |||
| F1 (Fine) | 145 | 105 | 11 | |||
| F2 (Extra fine) | 120 | 80 | 8 | |||
| HP400 | C1 (Extra coarse) | 360 | 290 | 30 | 4P 315 | 140-630 |
| C2 (Coarse) | 310 | 250 | 25 | |||
| M (Medium) | 260 | 196 | 20 | |||
| F1 (Fine) | 182 | 110 | 13 | |||
| F2 (Extra fine) | 135 | 90 | 10 | |||
| HP500 | C1 (Extra coarse) | 370 | 330 | 38 | 4P 400 | 175-790 |
| C2 (Coarse) | 320 | 290 | 28 | |||
| M (Medium) | 245 | 210 | 22 | |||
| F1 (Fine) | 180 | 130 | 13 | |||
| F2 (Extra fine) | 150 | 95 | 10 | |||
| HP800 | C1 (Extra coarse) | 450 | 352 | 38 | 4P 830 | 260-1200 |
| C2 (Coarse) | 373 | 298 | 32 | |||
| M (Medium) | 340 | 275 | 25 | |||
| F1 (Fine) | 280 | 230 | 16 | |||
| F2 (Extra fine) | 235 | 150 | 10 |
