Impact crusher
Applicable materials: river pebbles, granite, basalt, limestone, etc.
Processing capacity: 30-250t/h
Feed size: <500mm
Discharge size: 20mm-50mm
Applicable materials: river pebbles, granite, basalt, limestone, etc.
An impact crusher is a processing equipment that uses impact energy to perform secondary and tertiary crushing of medium-hard and brittle materials (compressive strength not exceeding 350 MPa).

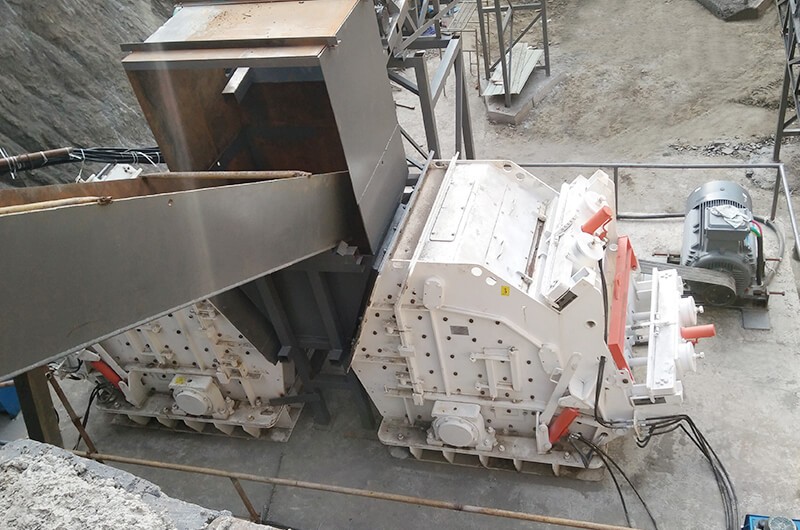

It is a horizontal shaft impact crusher, which is often combined with a jaw crusher to form a fixed, portable, and crawler crushing production line.
Application scope: mining crushing, railways, highways, energy, cement, chemicals, construction and other industries
Finished product specifications: 0-5-10-31.5mm
Large feed inlet, high crushing chamber, suitable for high material hardness, large block size, less stone powder in the product.

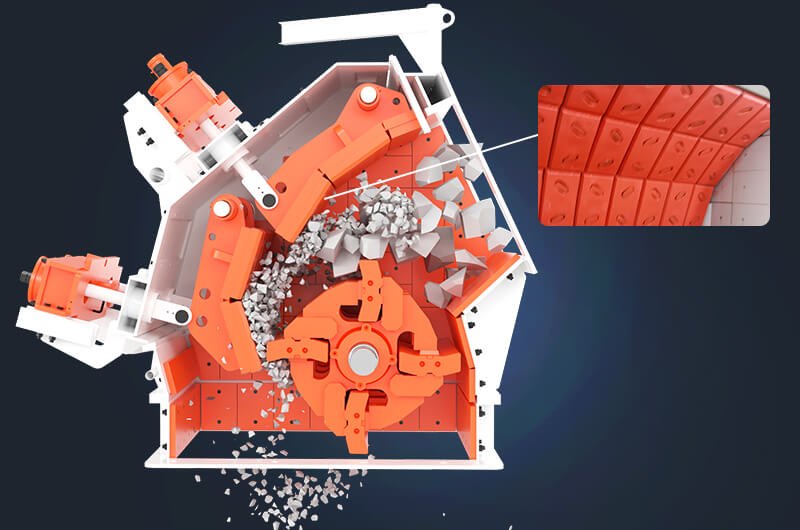

The gap between the impact plate and the hammer can be easily adjusted, effectively controlling the particle size of the discharged material, and the particle shape is good.
The impact crusher has a compact structure, strong machine rigidity, and a large moment of inertia of the rotor.
High chromium hammer, impact resistance, wear resistance, and strong impact force.
The impact crusher has keyless connection, convenient maintenance, economical and reliable.
Complete crushing functions, high production efficiency, low wear of machine parts, and high comprehensive benefits.
| Name | Materials |
|---|---|
| Liner | High manganese steel, high manganese chromium |
| Rotor | Cast steel, alloy steel |
| Impact plate | High manganese steel |
| Hammer | High manganese steel |
| Board hammer | High chromium cast iron, high manganese steel |
| Spindle | Carbon steel and alloy steel |
| Model | Specification | Feed Opening Size (mm) | Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) | Overall Dimension (mm) |
|---|---|---|---|---|---|---|
| PF-1007 | φ1000×700 | 400×730 | ≤250 | 15-60 | 45 | 2319×1654×2558 |
| PF-1010 | φ1000×1050 | 400×1080 | ≤300 | 50-90 | 55 | 2319×2001×2558 |
| PF-1210 | φ1250×1050 | 450×1060 | ≤300 | 80-150 | 90 | 2585×2053×2809 |
| PFV-1214 | φ1250×1400 | 450×1440 | ≤300 | 100-200 | 132 | 2582×2403×2809 |
| PFV-1315 | φ1320×1500 | 550×1530 | ≤350 | 210-220 | 185 | 2930×2761×3053 |
| PFV-1320 | φ1320×2000 | 610×1900 | ≤500 | 220-250 | 220 | 3224×3175×2706 |
| PFV-1520 | φ1500x2000 | 830×2040 | ≤700 | 300-550 | (220-250)×2 | 3959×3564×3330 |
| PFV-1820 | φ1800x2000 | 1260×2040 | ≤800 | 600-800 | 630-710 | 4400×3866×4009 |
