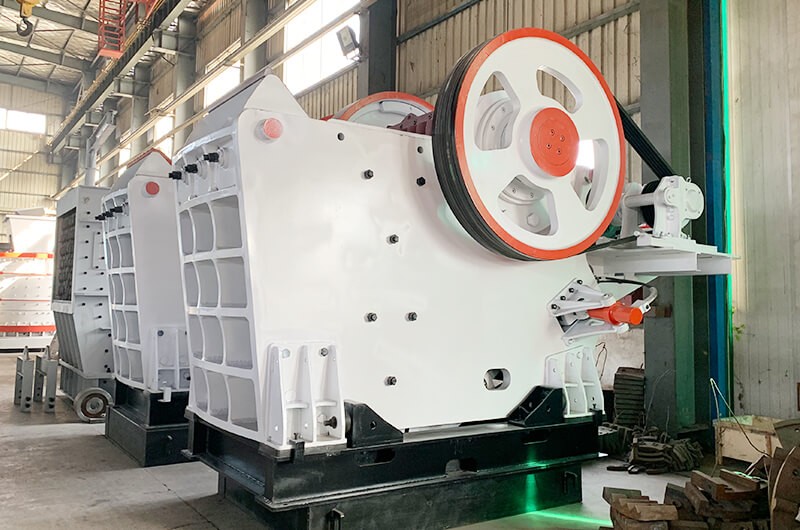

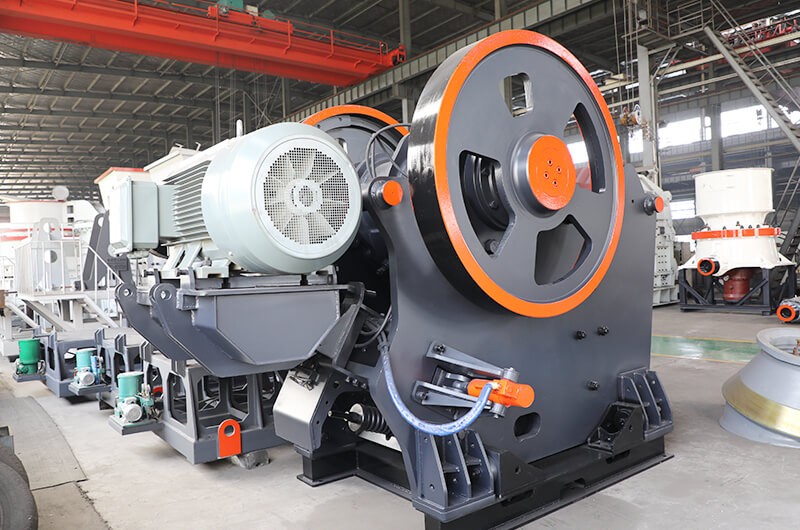

European version jaw crusher

Applicable materials: marble, bluestone, river pebble, granite, basalt, iron ore, limestone, quartz, sandstone, etc.

Feed size: ≤1040mm

Production capacity: 120-1160t/h

Get Quotes

60s Manual Response

24-hour Free Solution

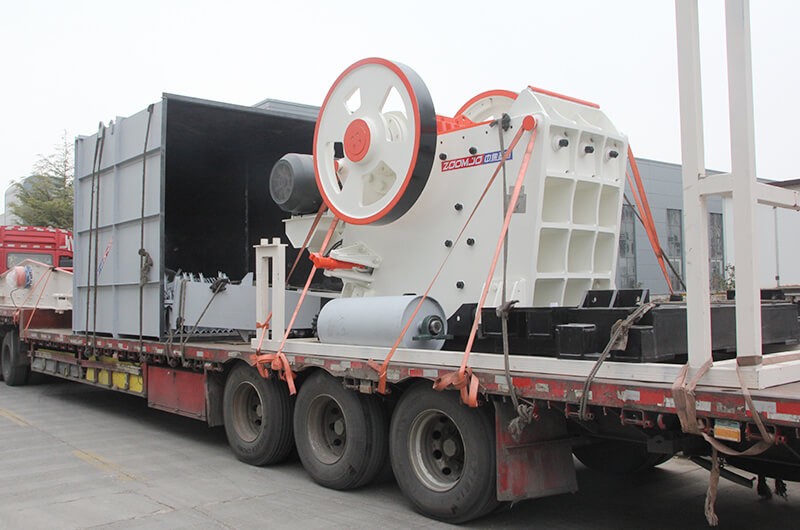

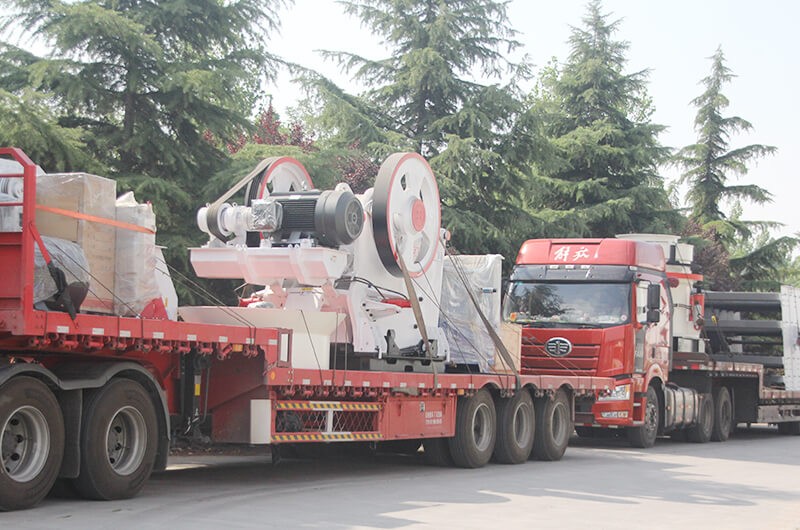

1-10 Days Shipping

Quick Installation

One Year Warranty

Factory Direct Sales

Product Introduction

The European version jaw crusher is a new type of intelligent, environmentally friendly and energy-saving stone crushing equipment designed according to the market situation of sand and gravel aggregates and customer needs. This is a new product that introduces European technology and is optimized and upgraded on the basis of traditional jaw crushers. Compared with general crushers, it has made better changes and upgrades in motion parameters, structural forms, and adjustment methods. It is frequently purchased by friends in many fields such as sand and gravel, building materials, roads, and chemicals.

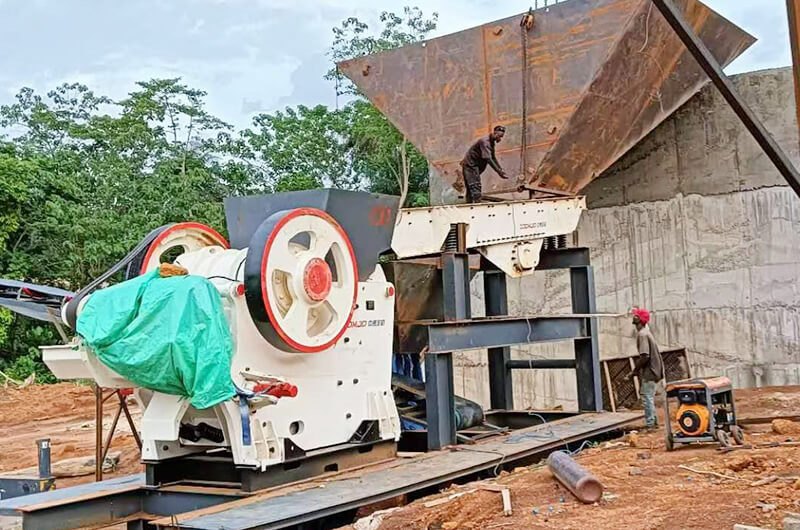

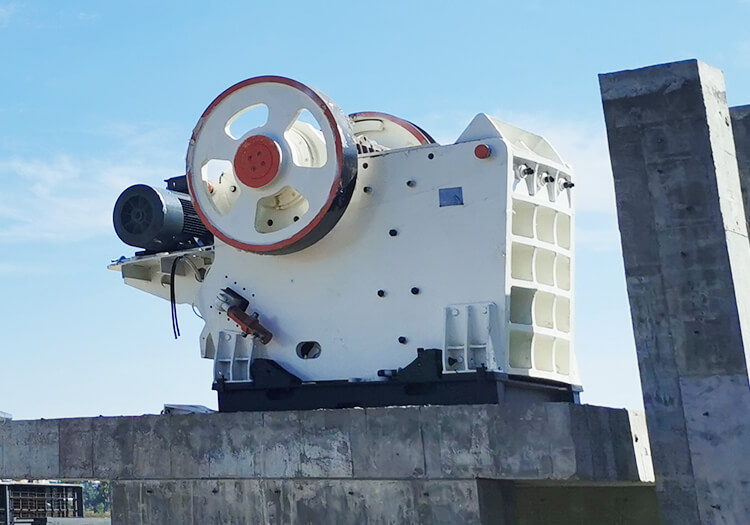

Scope of application: large-block material crushing in mining, metallurgy, construction, highway, railway, water conservancy, chemical industry and other industries

Product advantages

1. Stable frame

The non-welded detachable frame changes the unstable defects of the old welded frame, ensuring the sturdiness and stability of the equipment. The detachable structure is more convenient for transportation and installation, and is safe and convenient for underground operations.

2. Safe and low noise

The integrated motor base structure is easy to install and saves space. The shock-absorbing pad design between the main unit and the base can reduce equipment vibration and reduce operating noise.

3. Large crushing ratio

The optimized design of operating parameters can ensure that the stone can be crushed at the top of the crushing chamber, so that the stroke is larger when it reaches the bottom, and the crushing ratio is greatly improved.

4. New wedge quick adjustment method

The new wedge quick discharge adjustment method makes the discharge particle size easier to control and more convenient to adjust, reducing labor costs, reducing downtime, and making the discharge more uniform.

5. Durable and Longer Life

The bearing specifications have been increased and the service life has been extended. The toggle plate is designed with high-strength steel plates, which are easy to replace and more durable. The overall failure rate of the equipment has been reduced by 5 percentage points, and the quality is more reliable.

6. High yield and environmental protection

The "V"-shaped crushing chamber has a larger crushing area, reduces blockage, has high working efficiency and is more productive. A single machine can produce 1,160 tons per hour without any problem. At the same time, the operation is environmentally friendly and less polluting. It is a high-yield crusher that meets environmental assessment standards.

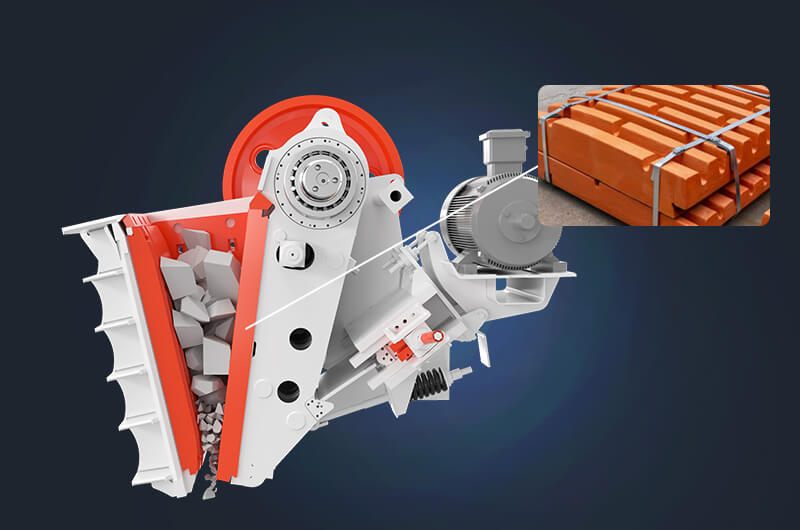

Jaw Crusher Parts Service

Name	Materials
Crushing tooth plates of movable jaw and fixed jaw	Manganese steel
Front and rear thrust plates	Cast steel
Thrust plate support seat	Carbon steel
Bearing bushing of eccentric shaft	Alloy
Bearing bushing of movable jaw suspension shaft	Bronze

Product Parameters

Model	Feed size(mm)	Maximum feed size(mm)	Discharge size(mm)	Capacity(t/h)	Motor(KW)
C100	630×1000	580	80-180	110-230	90
C110	870×1100	720	85-220	160-380	110
C130	1100×1300	960	120-260	260-680	185
C145	1100×1450	1080	130-275	320-950	220
C160	1200×1600	1180	165-320	550-1100	250
C200	1500×2000	1200	175-320	760-1375	400
