CNC sand machine
Applicable materials: limestone, quartz, granite, dolomite, iron ore, coal gangue, river pebbles, weathered rock, soft rock, etc.
Processing capacity: 5-180t/h
Feed size: ≤100mm
Applicable materials: limestone, quartz, granite, dolomite, iron ore, coal gangue, river pebbles, weathered rock, soft rock, etc.
The CNC sand machine is a new type of fine and coarse crushing stone machine developed by engineers by combining the advanced technology of similar crushers at home and abroad, optimizing the main technical parameters and improving the structural characteristics according to the actual situation and user needs.
The CNC sand machine is a new type of high-efficiency fine crushing equipment that integrates hammer crusher and impact crusher. It has outstanding advantages such as large production capacity, high crushing efficiency, large crushing ratio, small abrasion, low energy consumption, good sealing, stable operation and convenient maintenance.
When building materials companies use this equipment to crush materials such as limestone, coal, coal gangue and cement clinker, it can significantly reduce the particle size of the mill and increase the mill output. It is an ideal energy-saving crushing equipment.
Finished product particle size: 0.2-5mm
Application areas: mining, metallurgy, refractory materials, cement, coal, glass, ceramics, electricity and other industries
The wear-resistant lining can better protect the rotor disc from wear.
The large and small hammers are used together to achieve a more reasonable particle size.

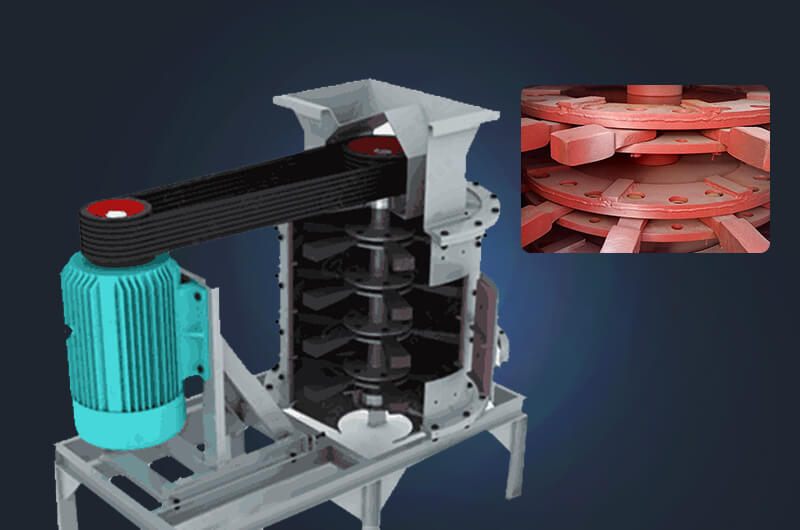

The rotor is a tower-shaped structure with high production efficiency and large processing capacity.
| Model | Cylinder diameter (in) | Feed Size (mm) | Output Size | Screening Speed (%) | Processing Capacity (t/h) | Motor Power (kW) | Dimensions L x W x H (mm) |
|---|---|---|---|---|---|---|---|
| ZSSL-29 | 29 | <30 | Adjustable below 5 mm | ≤10% | 44701 | 45 | 2100×1000×1700 |
| ZSSL-39 | 39 | <35 | Adjustable below 5 mm | ≤10% | 10-40 | 75 | 3100×1250×2200 |
| ZSSL-49 | 49 | <40 | Adjustable below 5 mm | ≤10% | 20-60 | 132 | 3200×1550×2800 |
| ZSSL-59 | 59 | <45 | Adjustable below 5 mm | ≤10% | 40-100 | 160 | 3500×1800×2900 |
| ZSSL-69 | 69 | <50 | Adjustable below 5 mm | ≤10% | 60-150 | 200 | 4000×2050×31000 |
| ZSSL-79 | 79 | <50 | Adjustable below 5 mm | ≤10% | 80-180 | 132×2 | 5720×2350×3100 |
