Circular vibrating screen

Applicable materials: dolomite, coal gangue, granite, iron ore, river pebbles, quartz sand, limestone

Feed size: ≤200mm

Processing capacity: 150-1200t/h

Product Introduction

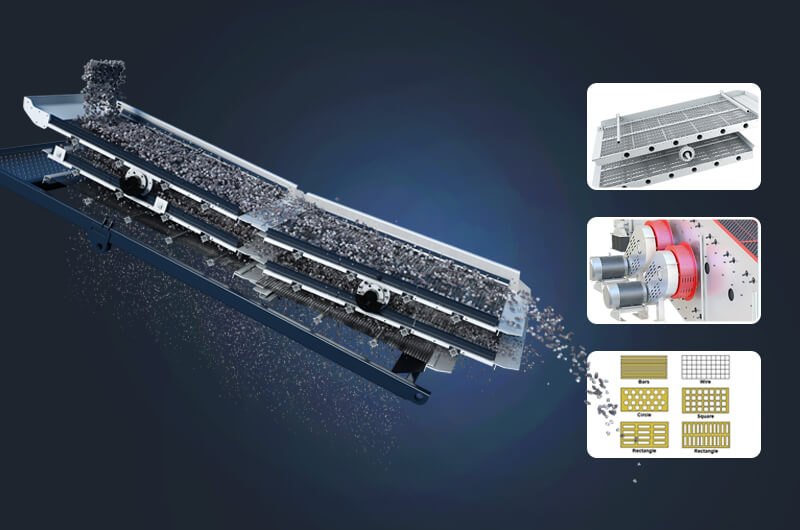

Circular vibrating screen is a common screening machine, widely used in crushing, sand making, and mineral processing. Circular vibrating screen moves in a circular motion and is a multi-layer, new type of vibrating screen, also known as a grading screen or screening machine. It is generally used as an auxiliary equipment for stone crushing production lines, sand making production lines, ore beneficiation plants, etc.

Scope of application: Mining, quarrying, construction, construction and other industries

Product advantages

High screening and production efficiency: Due to the strong vibration of the screen box, the phenomenon of material blocking the screen holes is reduced, making the screen have higher screening efficiency and productivity.

Simple structure and convenient maintenance: Due to the simple structure, it is convenient to replace the screen surface, and the replacement of the screen surface is time-saving and convenient, which can effectively reduce downtime.

Good equipment material, sturdy and durable: All materials of the equipment are carefully selected, making the entire equipment more sturdy and durable, and longer service life.

Product Parameters

Model	Number of screen layers	Screen area(m²)	Opening size(mm)	Feed size (mm)	Processing capacity (t/h)	Vibration frequency(v.p.m)	Power (kw)
YA1848	1	7.5	6-50	≤200	150-525	845	15
2YA1848	2	7.5	6-50	≤200	150-525	845	15
YAH1848	1	7.5	30-150	≤50	250-1000	755	13
2YAH1848	2	7.5	30-150	≤400	250-1000	755	15
YA2148	1	10	6-50	≤210	180-630	748	18.5
2YA2148	2	10	6-50	≤210	180-630	748	22
YAH2148	1	10	13-200	≤400	270-1200	708	18.5
2YAH2148	2	10	30-150	≤400	270-1200	708	22
YA2160	1	12	3-80	≤200	230-800	748	18.5
2YAH2160	2	12	6-50	≤200	230-800	748	22
YAH2160	1	12	6-50	≤400	350-1500	708	30
2YAH2160	2	12	30-150	≤400	350-450	708	30
YA2448	1	11	6-50	≤200	200-700	748	18.5
YAH2448	1	11	6-50	≤400	310-1300	708	30
2YAH2448	2	11	30-150	≤400	310-1300	708	30
YA2460	1	14	6-50	≤200	260-780	748	30
2YA2460	2	14	6-50	≤200	260-780	748	30
YAH2460	1	14	30-150	≤400	400-1700	708	30
2YAH2460	2	14	30-150	≤400	400-1700	708	30
