Vibrating feeder
Applicable materials: river pebbles, copper ore, limestone, basalt, quartz stone and more than 200 other materials
Feed size: ≤750mm
Processing capacity: 96-560t/h
Applicable materials: river pebbles, copper ore, limestone, basalt, quartz stone and more than 200 other materials

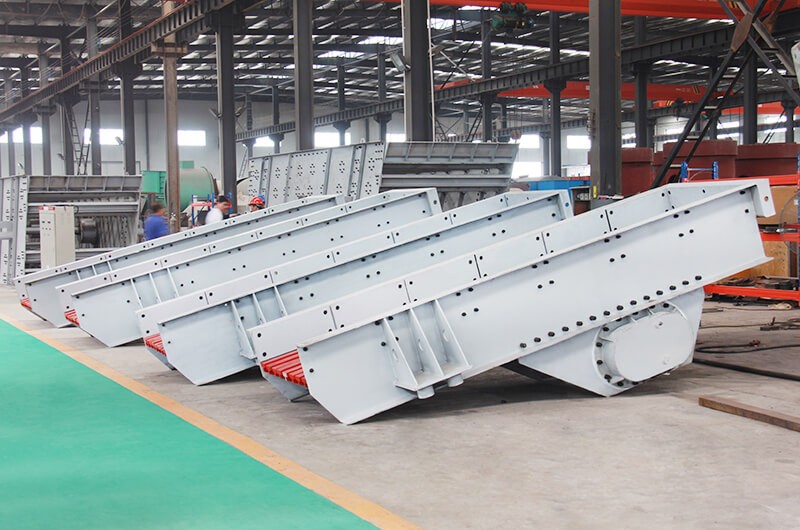

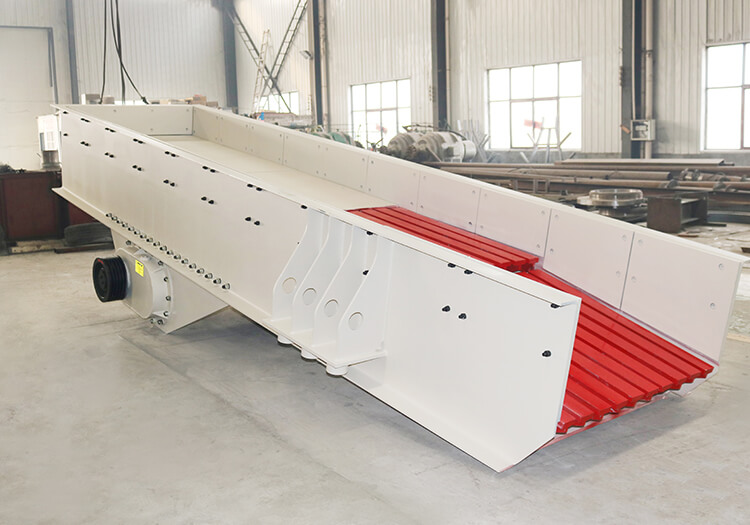

The feeder produced by our company is a linear vibrating feeder, which has the characteristics of stable vibration, reliable operation, long life, etc. It can feed materials continuously and evenly and screen the materials.

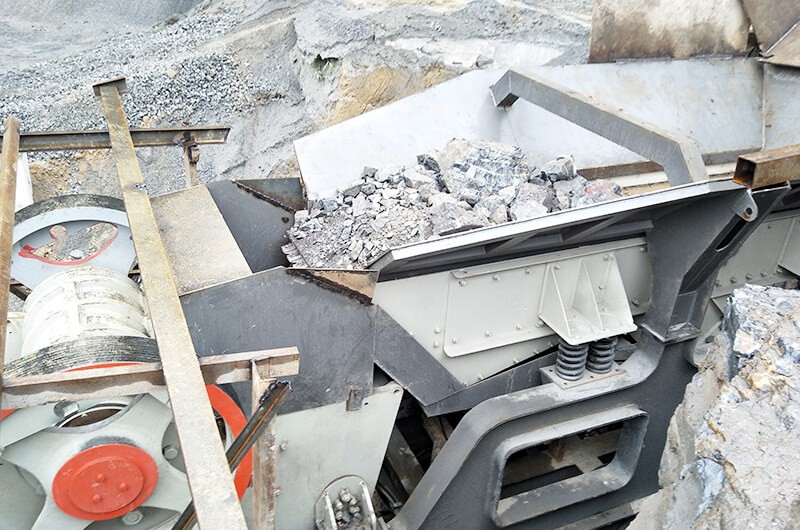

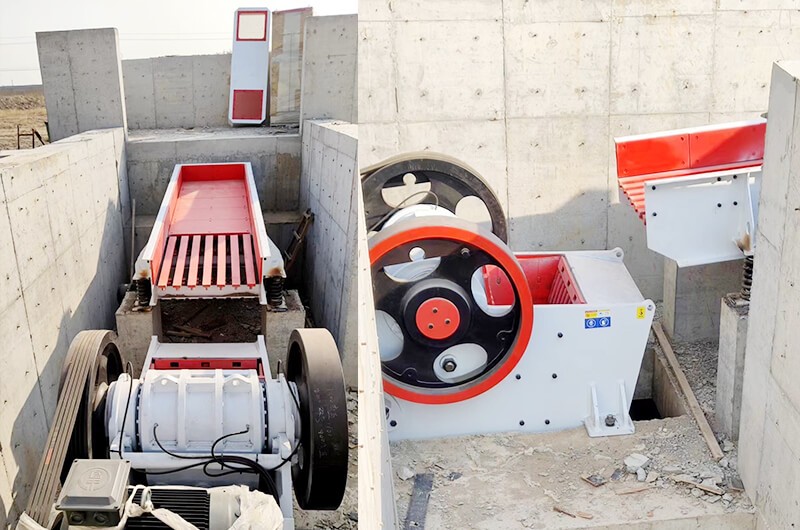

Scope of application: Widely used in crushing and screening equipment in metallurgy, coal mining, mineral processing, building materials, chemical industry, abrasive and other industries
Super heavy load-bearing structure with strong adaptability: It adopts a strong load-bearing structure, which can withstand large bin pressure and large impact load. The machine body has high strength and meets various feeding conditions in the coarse section.
Stable performance of the vibrator: The vibrator is designed for harsh working conditions such as high performance, heavy load, frequent start and stop, and frequency conversion.
Wide range of uses, convenient tilt adjustment: The spring bracket adopts a pin structure, which can easily adjust the inclination of the feed box according to the on-site working conditions.
| Model | Maximum Feed Particle Size (mm) | Processing Capacity (t/h) | Motor Power (kw) | Installation Inclination Angle (°) | Tank Body Dimensions (mm) |
|---|---|---|---|---|---|
| GZD-650x2300 | 300 | 80-100 | 2×1.1 | 10-20 | 650×2300 |
| GZD-750x2500 | 350 | 100-130 | 2×1.1 | 10-20 | 750×2500 |
| GZD-850x3000 | 400 | 120-150 | 2×3 | 10-20 | 850×3000 |
| GZD-1000x3600 | 500 | 150-200 | 2×3.7 | 10-20 | 1000×3600 |
| GZD-1100x3600 | 580 | 240-300 | 2×3.7 | 10-20 | 1100×3600 |
| GZD-1300x3600 | 650 | 450-600 | 2×5.5 | 10-20 | 1300×3600 |
| GZD-1500x3600 | 1050 | 450-1000 | 2×7.5 | 10-20 | 1500×3600 |
| GZD-2000x3600 | 1200 | 550-1000 | 2×10 | 10-20 | 2000×3600 |
| GZD-2500x5000 | 1500 | 650-1500 | 2×18 | 10-20 | 2500×5000 |
| ZSW-380x95 | 500 | 100-280 | 8p 11 | 0-5-10-15 | 3800×960 |
| ZSW-490x110 | 630 | 150-400 | 6p 15 | 00-5-10 | 4900×1100 |
| ZSW-490x130 | 750 | 400-700 | 6p 22 | 00-5-10 | 4900×1300 |
| ZSW-600x130 | 750 | 400-700 | 4p 22 | 00-5-10 | 6000×1300 |
| ZSW-600x150 | 800 | 500-900 | 4p 30 | 00-5-10 | 6000×1500 |
| ZSW-600x180 | 900 | 700-1300 | 4p 37 | 00-5-10 | 6000×1800 |
| ZSW-600×200 | 1200 | 800-1500 | 4p 55 | 00-5-10 | 6000×2000 |
