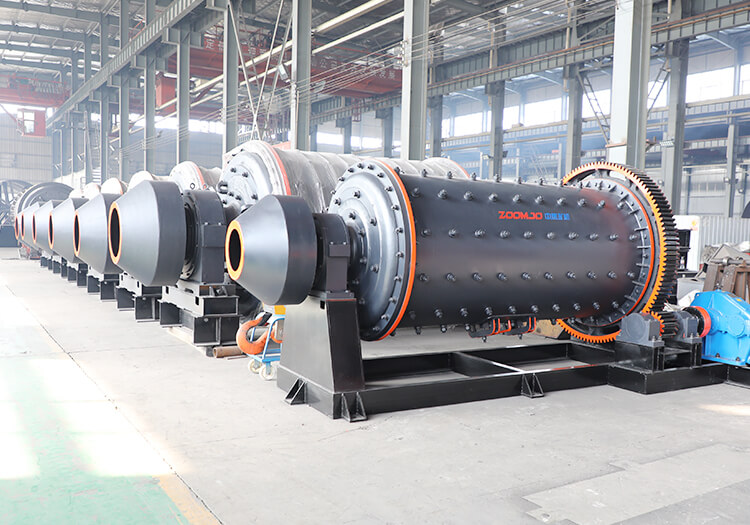

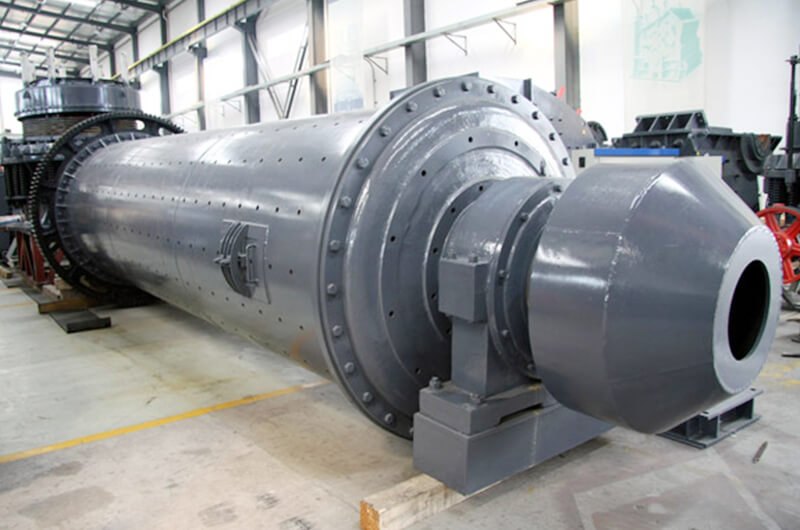

Raw Material Mill

Product features: Grinding various ores and other grindable materials

Product Specifications: φ1.5×5.7-φ4.6×10.5+3.5m

Production capacity: 4.5-210t/h

Get Quotes

60s Manual Response

24-hour Free Solution

1-10 Days Shipping

Quick Installation

One Year Warranty

Factory Direct Sales

Product introduction

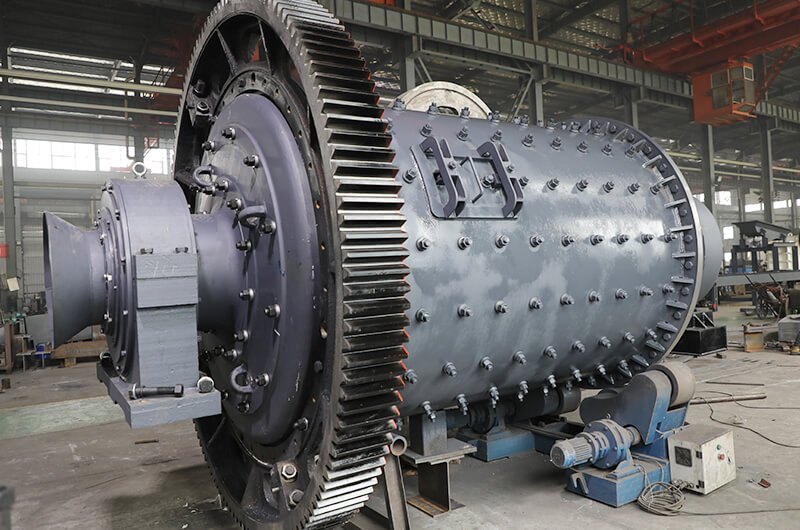

Raw material mill consists of feeding part, discharging part, cyclone part, transmission part (reducer, small transmission gear, generator, electrical control), which has the advantages of lower consumption, higher production capacity, no pollution, energy saving and long service life.

Product Advantages

Advanced and unique streamline design reduces ventilation resistance and expands effective volume.

Various liner structures can improve grinding efficiency.

Negative pressure during the working process can avoid the phenomenon of powder leakage.

The dryness of material can be up to 6-8% due to the heat preservation method.

Product Parameters

Product Specifications(m)	Mill form	Transmission Form	Gear Reducer		Motor Power(kw)	Capacity(t/h)	Total Weight(t)
Product Specifications(m)	Mill form	Transmission Form	Model	Speed Reduction Ratio	Motor Power(kw)	Capacity(t/h)	Total Weight(t)
φ1.5×5.7	open-circuit	Edge drive	ZD40	3.55	130	4.5-6	25.8
φ1.8×6.4	open-circuit	Edge drive	ZD60	4.5	210	7.5-15	43
φ2.2×6.5	close-circuit	Edge drive	ZD70	5	380	14-26	60
φ2.4×7	close-circuit	Edge drive	ZD70	5	475	24-28	81
φ2.4×10	close-circuit	Edge drive	ZD80-4-LL	6.44	570	32-36	118
φ2.6×10	close-circuit	Edge drive	JDX710	6.3	800	45-50	130
φ3×9	open-circuit	Edge drive	JDX800	6.3	1000	55-60	158
φ3.2×9	close-circuit	Edge drive	MBY900	7.1	1250	62-65	195
φ3.5×10	open-circuit	Edge drive	JDX900	5.84	1250	70-75	200
φ3.8×7.5	close-circuit	Edge driv	JDX900	5.6	1600	80	233
φ4.6×10+3.5	close-circuit	Center drive	JQS3550	15.1	3550	190	415
φ4.6×10.5+3.5	close-circuit	Center drive	JQS3550	15.1	3550	210	476
