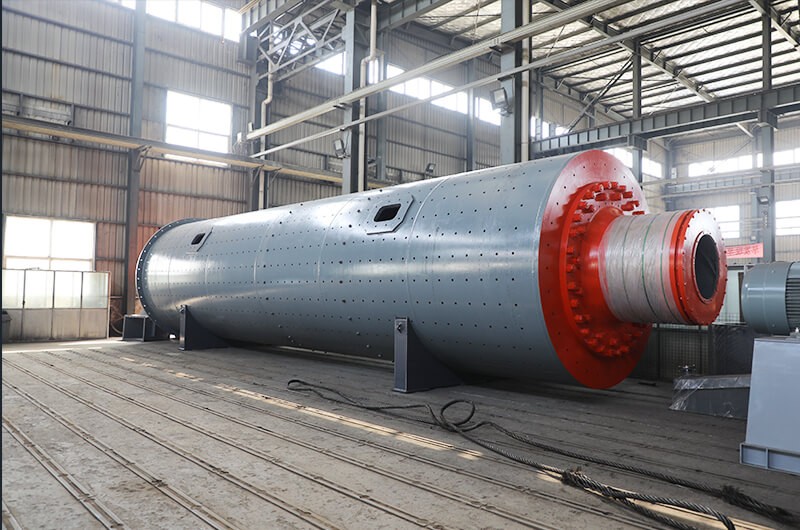

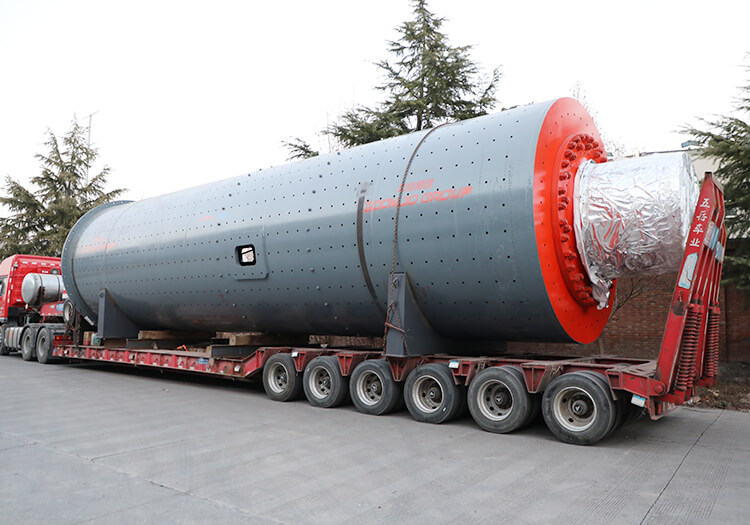

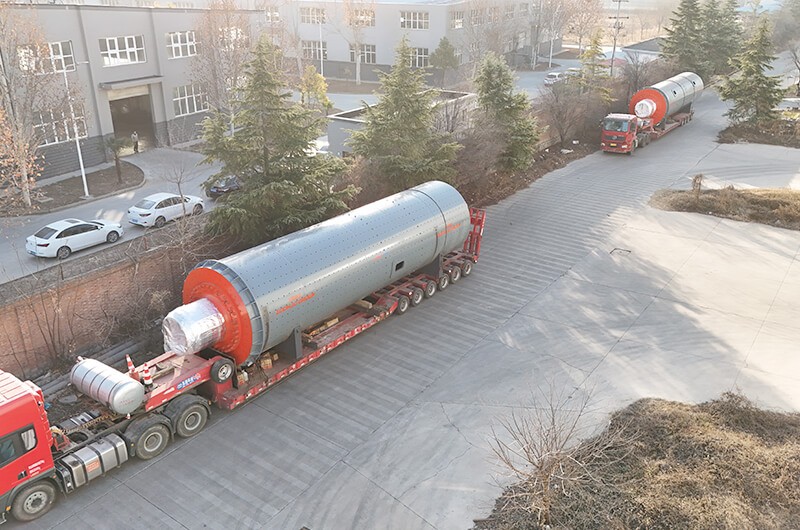

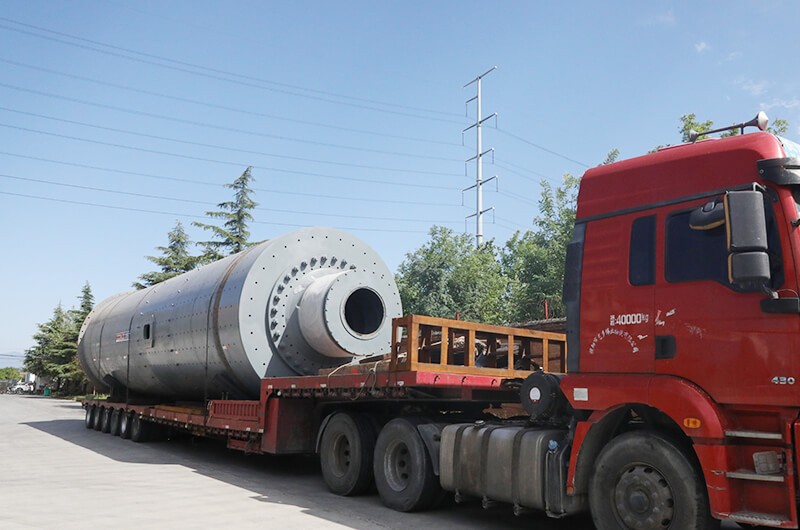

Cement Mill

Applicable materials: cement silicate products, etc.

Product specifications: φ1.83×7～φ4.6×14m

Processing capacity: 6.5-135t/h

Product Introduction

Cement mill is one of the main cement equipments, which is the key equipment for crushing materials after they are crushed, and plays a relatively important role in cement production line and cement production process.

Cement mill is widely used in cement, silicate products, new building materials, refractory materials, chemical fertilizer, black and non-ferrous metal beneficiation and other production industries, dry or wet grinding of various ores and other grindable materials.

Performance Characteristics

High-strength hollow shaft: Made of cast steel, with replaceable lining to extend service life.

Precision Gear Transmission: The large rotary gear is hobbed by castings to ensure smooth meshing and reduce wear.

Wear-resistant optimization: the cylinder body is lined with high wear-resistant liner, adapting to long-term high-intensity operation.

Flexible adaptation: supports dry cement mill and wet grate cement mill to meet the needs of different materials and discharge processes.

Product Parameters

Product Specifications	Cylinder speed （r/min）	Ball loading (t)	Feed size (mm)	Discharge size (mm)	Yield (t/h)	Motor power (kw)	gross weight (t)
Ф900×1800	36-38	1.5	<20	0.075-0.89	0.65-2	18.5	5.85
Ф900×3000	36	2.7	<20	0.075-0.89	1.1-3.5	22	6.98
Ф1200×2400	36	3	<25	0.075-0.6	1.5-4.8	30	13.6
Ф1200×3000	36	3.5	<25	0.074-0.4	1.6-5	37	14.3
Ф1200×4500	32.4	5	<25	0.074-0.4	1.6-5.8	55	15.6
Ф1500×3000	29.7	7.5	<25	0.074-0.4	2-5	75	19.5
Ф1500×4500	27	11	<25	0.074-0.4	3-6	110	22
Ф1500×5700	28	12	<25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	<25	0.074-0.4	4-10	130	34.5
Ф1830×4500	25.4	15	<25	0.074-0.4	4.5-12	155	38
Ф1830×6400	24.1	21	<25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	<25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	<25	0.074-0.4	6.5-36	155	45
Ф2100×4500	23.7	24	<25	0.074-0.4	8-43	245	56
Ф2100×7000	23.7	26	<25	0.074-0.4	12-48	280	59.5
Ф2200×4500	21.5	27	<25	0.074-0.4	9-45	280	54.5
Ф2200×6500	21.7	35	<25	0.074-0.4	14-26	380	61
Ф2200×7000	21.7	35	<25	0.074-0.4	15-28	380	62.5
Ф2200×7500	21.7	35	<25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	<25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	<25	0.074-0.4	8.5-60	320	72
Ф2700×4000	20.7	40	<25	0.074-0.4	22-80	380	95
Ф2700×4500	20.7	48	<25	0.074-0.4	26-90	480	102
Ф3200×4500	18	65	<25	0.074-0.4	According to process conditions	630	149
Ф3600×4500	17	90	<25	0.074-0.4	According to process conditions	850	169
Ф3600×6000	17	110	<25	0.074-0.4	According to process conditions	1250	198
Ф3600×8500	18	131	<25	0.074-0.4	45.8-256	1800	260
Ф4000×5000	16.9	121	<25	0.074-0.4	45-208	1500	230
Ф4000×6000	16.9	146	<25	0.074-0.4	65-248	1600	242
Ф4000×6700	16.9	149	<25	0.074-0.4	75-252	1800	249
Ф4500×6400	15.6	172	<25	0.074-0.4	84-306	2000	280
Ф5030×6400	14.4	216	<25	0.074-0.4	98-386	2500	320
Ф5030×8300	14.4	266	<25	0.074-0.4	118-500	3300	403
Ф5500×8500	13.8	338	<25	0.074-0.4	148-615	4500	525
