Applicable materials: non-ferrous metals, coal fluorite, talc, etc. Application Scope：Froth flotation has become one of the most important mineral processing methods. Almost all mineral resources can be floated by the coke flotation machine.
The flotation machine is suitable for the selection of non-ferrous and ferrous metals, and can also be used for the selection of non-metals such as coal fluorite and talc.
The flotation machine is driven by a motor with a V-belt to drive the impeller to rotate, generating a centrifugal effect to form a negative pressure, on the one hand, to inhale sufficient air to mix with the slurry, on the other hand, to stir the slurry and mix the drugs, and at the same time to refine the foam, so that the minerals adhere to the foam, float to the surface of the slurry and then form mineralized foam. Adjust the gate height to control the liquid level so that the useful foam is scraped out by the scraper.
non-ferrous metals, coal fluorite, talc, etc.
Froth flotation has become one of the most important mineral processing methods. Almost all mineral resources can be floated by the coke flotation machine.

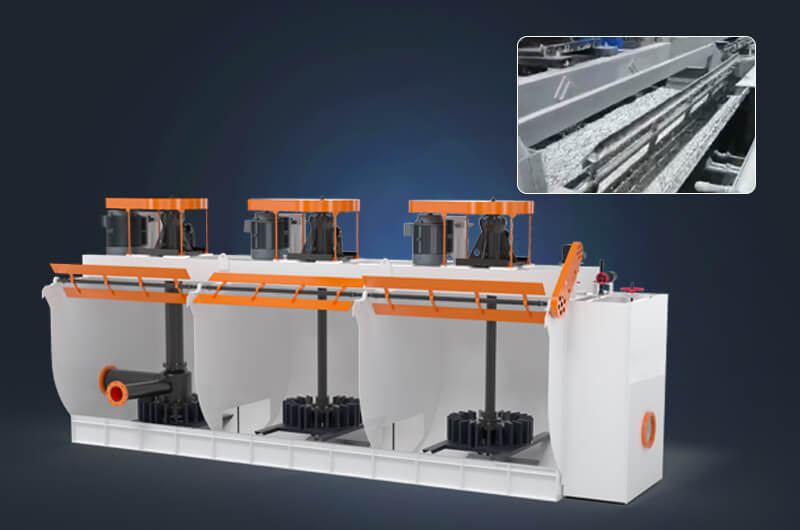

The flotation machine is mainly composed of a flotation tank, a mixing device, an aeration device, a mineralized foam unloading device, a motor, etc.
Flotation machine: It has a slurry inlet and a gate device for adjusting the slurry surface. It is mainly composed of a tank body welded with steel plates and a gate welded with steel plates and round steel.
Mixing device: It is mainly composed of pulleys, impellers, vertical shafts, etc., used to mix the slurry and prevent the ore sand from settling in the unit.
Aeration device: It consists of an air inlet pipe. When the impeller rotates, negative pressure is generated in the impeller cavity, so the air is sucked in through the hollow pump tube and dispersed in the slurry to form bubble clusters.
Mineralized foam discharge device: This device is mainly composed of a motor, a reducer and a scraper to scrape out the foam floating on the surface of the cell.
The new flotation machine developed by ZOOMJO GROUP is a high-efficiency flotation equipment with a large effective volume area and strong processing capacity. It is a flotation equipment with a high cost-effectiveness in the current market. The advantages and characteristics of the ZOOMJO GROUP flotation machine are introduced in detail below.
1. High flotation efficiency and low energy consumption.
2. The wearing parts have a long service life and can be combined with other equipment for mineral processing with better results.
3. The flotation machine itself has a high configuration and has the triple functions of air suction, slurry suction and flotation, and does not require any auxiliary equipment.
4. Mechanical stirring, simple operation and control, and convenient adjustment.
The purpose of grinding, classification and slurry mixing is to obtain liberated mineral particles and slurry of appropriate concentration.
The aim is to adjust and control the physical and chemical properties of the phase interface and promote the selective adhesion of gas bubbles and different mineral particles and their separation from each other.
After the prepared slurry is introduced into the flotation machine, a large number of dispersed bubbles are generated through the aeration and stirring of the flotation machine.
Ore particles with good floatability attach to the bubbles to form mineralized foam. While those with poor floatability cannot attach to the bubbles, but remain in the bubbles and are discharged from the flotation machine as tailings.
| Model | Volume(m³) | Tank size(mm) | Impeller diameter(mm) | Capacity (m³/min) | Power (kw) |
|---|---|---|---|---|---|
| BF-0.37 | 0.37 | 740x740x750 | 286 | 0.2-0.4 | 1.5/1.1 |
| BF-0.65 | 0.65 | 850x950x900 | 300 | 0.3-0.7 | 3/1.1 |
| BF-1.2 | 1.2 | 1050x1150x1100 | 450 | 0.6-1.2 | 5.5/1.1 |
| BF-2.0 | 2 | 1400x1450x1120 | 500 | 1-2 | 7.5/1.1 |
| BF-2.8 | 2.8 | 1650x1650x1150 | 550 | 1.4-3 | 11/1.5 |
| BF-4 | 4 | 1900x2000x1200 | 650 | 2-4 | 15/1.5 |
| BF-6 | 6 | 2200x2350x1300 | 700 | 3-6 | 18.5/1.5 |
| BF-8 | 8 | 2250x2850x1400 | 760 | 4-8 | 30/1.5 |
| BF-10 | 10 | 2250x2850x1700 | 760 | 5-10 | 30/1.5 |
| BF-16 | 16 | 2850x3800x1700 | 850 | 8-16 | 37/1.5 |
| BF-20 | 20 | 2850x3800x2000 | 850 | 10-20 | 37/1.5 |
| BF-24 | 24 | 3150x4150x2000 | 920 | 12-24 | 45/1.5 |
