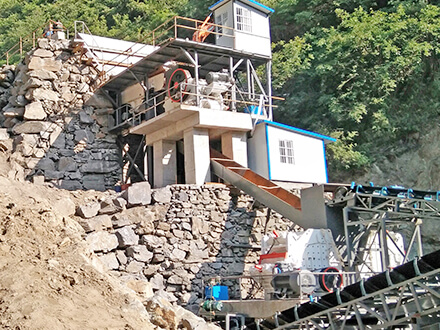

Jiangsu 550 tons per hour limestone crushing production line case

Customer Background

Mr. Wang's stone quarry was established in May 2018. After three years of development, it has become an important local supplier of sand and gravel aggregates. When purchasing equipment, Mr. Wang compared many manufacturers and finally chose Henan ZOOMJO GROUP, because of the stability and efficient production capacity of ZOOMJO GROUP equipment. After three years of operation, the 550 tons per hour limestone crushing production line not only meets market demand, but also brings rich benefits to Mr. Wang. The following is a detailed introduction to the project.

Solution design and configuration

Limestone is a medium-low hardness rock (Mohs hardness 3-4), and the crushing process is relatively simple. According to Mr. Wang's production capacity requirements (500-600 tons/hour), site conditions and finished product specifications (0-5mm, 5-10mm, 10-20mm, 20-30mm), we designed a "jaw crusher + impact crusher" efficient crushing solution for him to ensure low energy consumption, high output, and reduce operating costs.

Process flow

Feeding stage: Raw materials (≤700mm) enter the vibrating feeder (ZSW600×180) from the silo and are evenly fed into the jaw crusher (PE-1200×1500) for coarse crushing to 150-250mm.

Medium and fine crushing stage: The coarsely crushed stones are conveyed by conveyors into two impact crushers (PF-1315) for fine crushing, and the output particle size is controlled at 0-30mm.

Screening stage: The crushed materials are graded by vibrating screen (3YK3072) to obtain four kinds of finished products: 0-5mm, 5-10mm, 10-20mm, and 20-30mm. Unqualified materials are returned to the impact crusher for re-crushing, and qualified finished products are conveyed by conveyor to the finished product pile or loaded on trucks for transportation.

Project advantages

✔ High efficiency and energy saving: The combination of "jaw crusher + impact crusher" is used to adapt to the characteristics of limestone, with a large crushing ratio and low energy consumption.

✔ Stable and reliable: The equipment has been running for 3 years without major repairs, with a low failure rate, ensuring continuous production.

✔ Excellent finished product particle shape: The aggregate crushed by the impact crusher has a uniform particle shape and meets the high-standard requirements for sand and gravel for construction.

✔ High degree of automation: The entire line adopts a PLC control system to reduce manual intervention and improve production efficiency.

Conclusion

Since its commissioning, the production line has run for an average of 10 hours per day, with an annual output of more than 1.5 million tons, bringing significant economic benefits to Mr. Wang's stone factory. In the future, Henan ZOOMJO GROUP will continue to provide high-quality equipment and services to help customers create greater value!
