300-400 tons per hour granite crushing production line in Johor, Malaysia
Granite is an important building aggregate resource in Malaysia (Mohs hardness 6-7), widely used in highways, port projects and commercial concrete plants.
Customer Background
Tan Sri Lim from Johor, Malaysia is a well-known local building materials entrepreneur. He has established long-term cooperation with ZOOMJO GROUP since 2018 and has purchased 3 HP600 hydraulic cone crushers and 2 VSI1260 sand making machines for its sand and gravel aggregate export business. In 2022, Tan Sri Lim once again commissioned ZOOMJO GROUP to design a 300-400 tons per hour granite crushing production line for him, and said: "ZOOMJO GROUP's equipment is still stable in the high temperature and high humidity environment in Southeast Asia, and the after-sales service responds quickly. We trust it very much." The ZOOMJO GROUP technical team combined the characteristics of local raw materials and customized an efficient and energy-saving crushing solution for it.
Project Overview
Granite is an important building aggregate resource in Malaysia (Mohs hardness 6-7), widely used in highways, port projects and commercial concrete plants. The production line is located in Johor Bahru:
Production process
Coarse crushing stage:

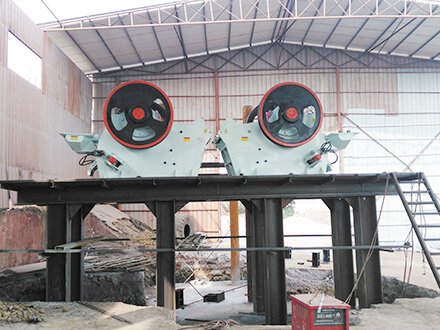

The granite raw materials are evenly fed into the PE110 jaw crusher through the ZSW600×150 heavy-duty vibrating feeder and crushed to 150-200mm.
Secondary crushing stage
After coarse crushing, the material is crushed by HP600 hydraulic cone crusher for secondary crushing, which adopts the principle of lamination crushing and the particle size of the material is controlled at 30-50mm.
Screening and closed-circuit circulation
3YK2460 circular vibrating screen for three-stage screening
Qualified aggregates are transported to the finished product pile
Exceeding-standard materials are automatically returned to the cone crusher for further crushing
Core device configuration
Equipment type | model | Technical advantages |
|---|---|---|
| Vibrating feeder | ZSW600×150 | High temperature resistant motor, suitable for tropical climate |
| Jaw crusher | PE110 | German technology bearing, overload protection |
| Hydraulic cone crusher | HP600 | Fully automatic hydraulic adjustment of discharge port |
| Circular vibrating screen | 3YK2460 | Swedish SKF bearing, maintenance-free design |
| Conveying system | B1000×20m etc | Rainproof and rust-proof, adjustable belt speed |
Operational benefits
Capacity reached
actual output reached 380t/h (10% more than the designed capacity)
Finished product quality:
Needle-like content < 8% (ASTM C33 standard)
Machine-made sand fineness modulus 2.8-3.2 adjustable
Customer Comments:
"This production line helped us win the aggregate supply contract for the Singapore TUAS Port Expansion Project. ZOOMJO GROUP's equipment has been running continuously for 18 months without any failures in a humid and rainy environment!" - Tan Sri Lim
ZOOMJO GROUP global service network
✔ 24-hour multilingual technical support (including Malay/English)
